Electrical and Pneumatic Requirements

Before starting the installation, it is critical to verify the electrical requirements based on the machine model. For example, a CSEG11L-3HV6 requires 208 VAC, 3-phase power.

The voltage and phase configuration can be identified by the model designation:

• No "V" in the model: 110 VAC, 1-phase

• V2: 208 VAC, 1-phase

• V4: 480 VAC, 3-phase

• V6: 208 VAC, 3-phase

Once the required power configuration has been verified based on the machine model, confirm that the customer has the following utilities and installation requirements available before proceeding:

1. 208/220 VAC, 3-phase: Customer must provide a power cable with four conductors: R, S, T, and E (ground).

2. 480 VAC, 3-phase: Customer must provide a power cable with four conductors: R, S, T, and E (ground).

3. Compressed Air: A clean, dry compressed-air supply must be provided.

4. Air Pressure and Flow: Supply pressure must be 100 PSI with a minimum flow rate of 10+ SCFM.

5. Air Hose: The air supply hose must have a minimum inside diameter (ID) of 1/2 inch.

6. Air Inlet Connection: The machine air inlet requires a 1/2-inch male quick-disconnect plug.

Important: Verify the machine model and corresponding electrical requirements before connecting power. Applying an incorrect voltage or phase configuration may result in equipment damage or unsafe operating conditions.

How to Operate the Machine

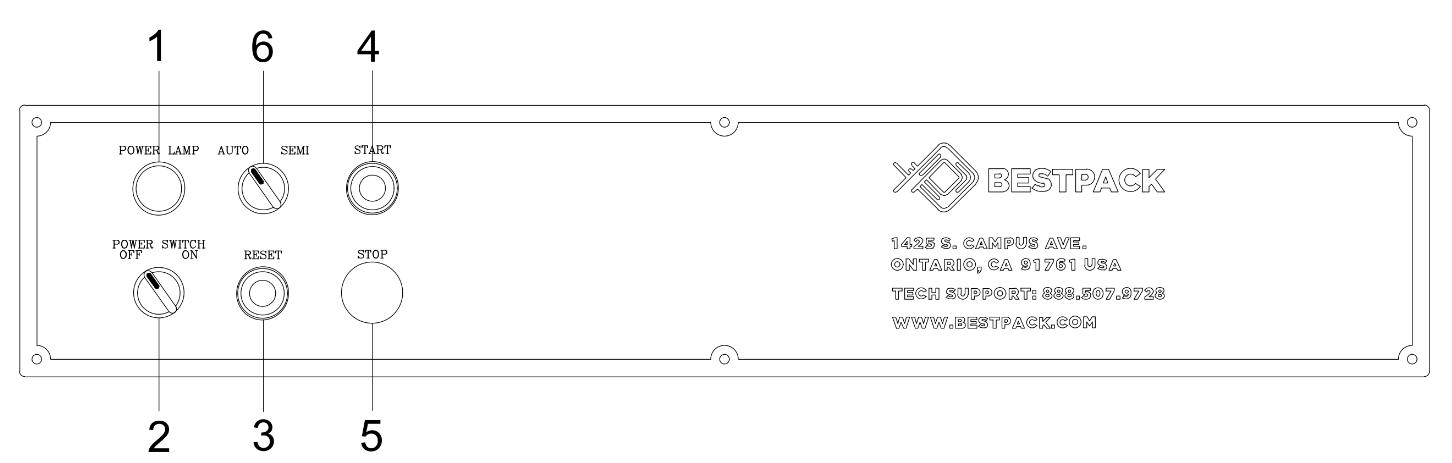

CONTROL PANEL

1. Control box power source is turned at 2 ON position. 6 AUTO

2.  If by manual way, please adjust 6

3. The safety gates are closed, two side e-stop switches reset, power indicator lights up.

4. Press 3 error reset button switch, PLC controls the air solenoid valve to be ON, air pressure goes
   up slowly, machine starts running until the air pressure reaches to 6 kg/cm2.

5. Machine stops running, press 3 error reset, height & width reset position automatically.

6. Machine stops running, press 3 error reset 3 seconds, top/bottom tape heads is forced to swift
   positions.

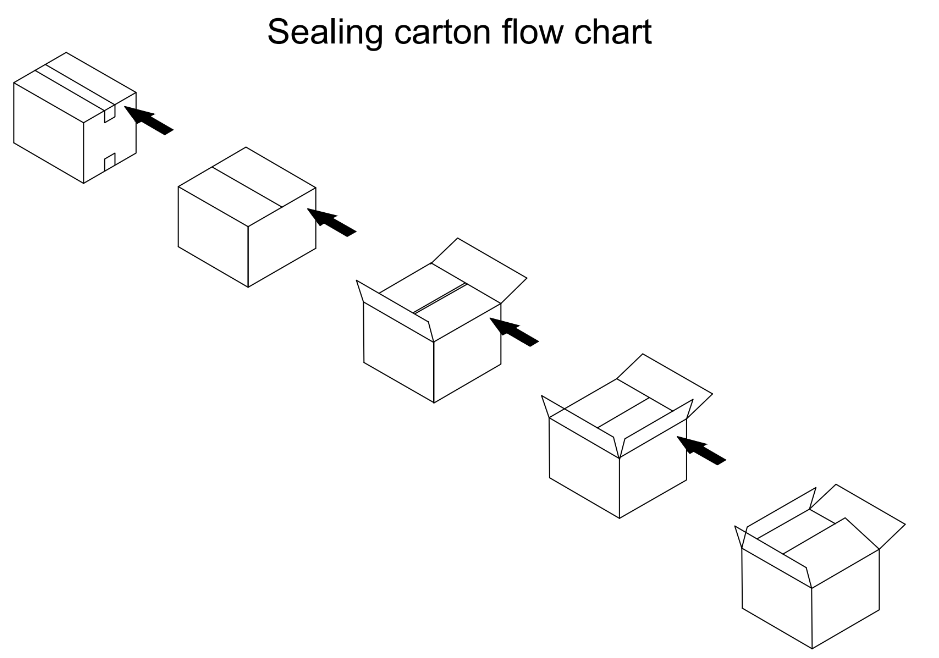

PS. When cartons enter to seal, please make sure the carton top open way, see attached picture.

CONTROL BOX OPERATION

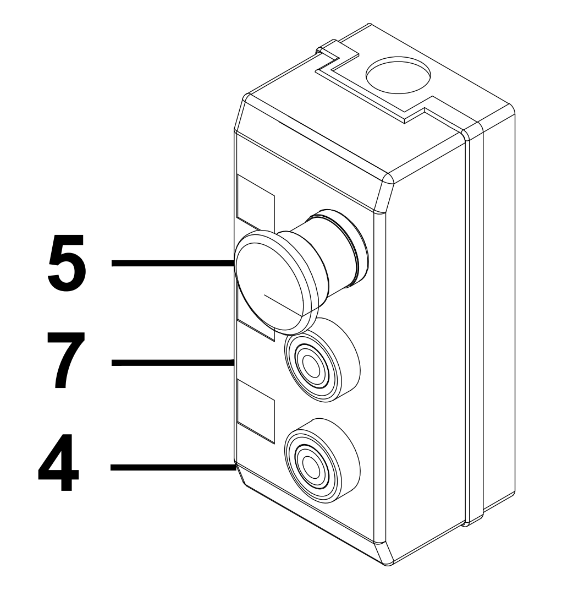

1. When standard way, press button 5, “FORCE STOP”, flap tape head mount, sealing top unit will
   stop to flap and seal. The side driven belt motor will also stop. If want to back to standard way, turn
   5 and press 4 “reset”, it can back to standard operation

2. When standard way, press button 7, “FORCE START”, the side driven belt motor will clip carton and
   back outfeed. Release press 7 “FORCE START”, it will back to standard operation

STACK LIGTH SIGNALS

1. Blinking Green - Ready to Operate​

2. Steady Green - Machine Operating ​

3. Blinking Yellow - ​Low on tape (Slow Freq) or Downstream Full (Fast Freq)​​

4. Blinking Red w/ Buzzer - Machine Faulted

PS. If the red light is blinking, the machine will stop completely. If the yellow light is blinking, the machine will continue operating; however, this indicates a warning condition. Check the remaining tape supply and verify that the outfeed conveyor is not blocked or obstructed.

CSEG Boxes

The following is a list of standard box types commonly used in the egg industry that can be processed on a CSEG machine:

• 5 Dozen: Detected by 1 of the 4 sensors in the stack photo-eye section.

• 9 Dozen: Detected by 2 of the 4 sensors in the stack photo-eye section.

• 12 Dozen: Detected by 3 of the 4 sensors in the stack photo-eye section.

• 24 Dozen: Detected by 3 of the 4 sensors in the stack photo-eye section.

• 15 Dozen: Detected by all 4 sensors in the stack photo-eye section.

• 30 Dozen: Detected by all 4 sensors in the stack photo-eye section.

• RPC Rectangular Basket: Detected by the reed switch located on the indexer centering-arm cylinder.

• Display Case: Detected by the ultrasonic sensor located on the top side of the indexer section.

Box Detection Sequence

The detection sequence is critical because each box type has its own machine configuration based on the specific combination of sensors triggered as the box passes through the stack photo-eye section.

The sensor detection pattern is used by the control system to identify the box type being processed. Once the box type is identified, the corresponding configuration is selected, and the machine applies the appropriate folding and sealing parameters required for that specific box.

Therefore, the sequence and combination of sensors triggered by each box are critical to proper box identification and machine operation. Incorrect sensor detection or an unexpected detection sequence may result in the machine selecting the wrong box configuration and applying incorrect operating parameters.

Air Configuration

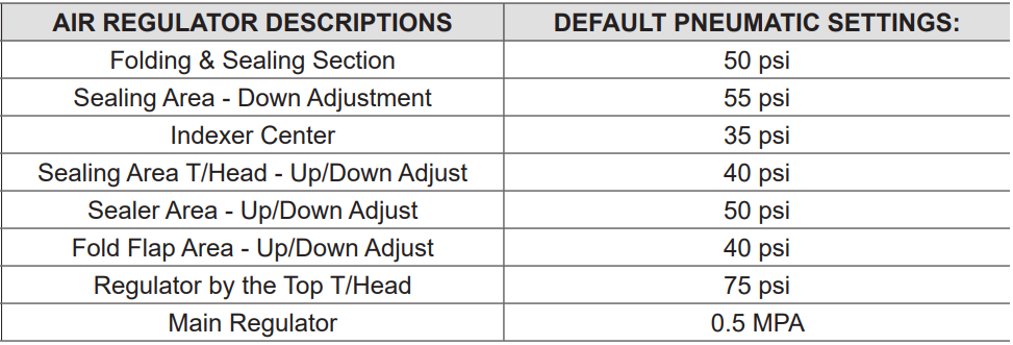

The following list provides the default air pressure settings for the machine. If necessary, the air pressure may be reduced when the machine's operation is too aggressive or the pneumatic movements are excessively forceful.

​​How to Navigate the HMI

Some CSEG units are equipped with an HMI touchscreen that provides access to various machine functions and diagnostic tools. From the HMI, you can monitor machine status, view system information, manually actuate machine components, modify parameter settings, configure box settings, and access additional machine functions.

The following link provides an article with detailed instructions on how to navigate and use the machine's HMI:

CSEG/CSEGA How to navigate the HMI

How to Connect the Ewon Device

The Ewon device provides secure remote connectivity, allowing BestPack engineers to provide more effective remote support. When the Ewon is online, a BestPack engineer can remotely access the machine's PLC or HMI, when required, to better diagnose issues, identify the root cause of a problem, or assist with software customizations requested by the customer.

The following links contain detailed instructions on how to connect and configure the Ewon device:

How to configure Ewon Cosy 131

Technician & Operators Training

Operator Training: training for production line operators covering the following topics:

• Operation of the control panel (buttons and switches).

• Safety features of the machine and proper box removal procedures.

• Reading and interpreting the HMI screen.

• Proper threading of the Tape Head.

Tech Training: technical training sessions covering the following key areas:

• Electrical Cabinet: Detailed presentation of all electrical components, accompanied by an explanation of their respective functionalities. The electrical schematic was utilized to illustrate wiring indications, facilitating the identification of inputs and outputs.

• Pneumatic Cabinet: Presentation of the standard air pressures set on the machine, along with an explanation of the control mechanisms governed by the various air regulators on the machine.

• HMI: Instruction on operating the machine in both Manual and Maintenance modes, including guidance on reading machine Inputs/Outputs and monitoring alarms.

• Sensors: Identification and discussion of all Photo-eyes and analog sensors, emphasizing potential issues that may arise if any of these sensors are misaligned.

• Machine PM: Recommendations for preventive maintenance, encompassing weekly and monthly tasks. These include lubrication of chains and indexer’s mechanisms, inspection of shafts, general cleaning, and testing of cylinders, as well as inspections of belts, motor couplers, sprockets, valves, and other critical components.

FAULT MESSAGES

Below is a list of possible fault messages that may be displayed on the CSEG HMI, along with a description of the condition and recommended corrective action:

• FOLDING AREA TIMEOUT: The box is stuck in the Folding Area. The machine detected that the box did not transition from one photo-eye to the next within the specified 10-second timeout period.

• SEALING AREA TIMEOUT: The box is stuck in the Sealing Area. The machine detected that the box did not transition from one photo-eye to the next within the specified 10-second timeout period.

• SAFETY GATE OPEN: One of the machine's safety gates is open. Close all safety gates and then press the Reset Push Button to restore machine operation.

• E-STOP ENGAGED: An Emergency Stop button on the control panel or remote operator station is engaged. Release the Emergency Stop and then press the Reset Push Button to restore machine operation.

• INDEXER MOTOR OVERLOAD: The motor starter or thermal overload relay for the Indexer Motor has tripped. Inspect the motor and mechanical system for the cause of the overload, then reset the motor starter or thermal overload relay to restore machine operation.

• FA RIGHT MOTOR OVERLOAD: The motor starter or thermal overload relay for the Folding Area Right Motor has tripped. Inspect the motor and mechanical system for the cause of the overload, then reset the motor starter or thermal overload relay to restore machine operation.

• FA LEFT MOTOR OVERLOAD: The motor starter or thermal overload relay for the Folding Area Left Motor has tripped. Inspect the motor and mechanical system for the cause of the overload, then reset the motor starter or thermal overload relay to restore machine operation.

• SA RIGHT MOTOR OVERLOAD: The motor starter or thermal overload relay for the Sealing Area Right Motor has tripped. Inspect the motor and mechanical system for the cause of the overload, then reset the motor starter or thermal overload relay to restore machine operation.

• SA LEFT MOTOR OVERLOAD: The motor starter or thermal overload relay for the Sealing Area Left Motor has tripped. Inspect the motor and mechanical system for the cause of the overload, then reset the motor starter or thermal overload relay to restore machine operation.

• LOW PRESSURE: The machine's pneumatic supply pressure is below the required operating level. Check the main air regulator and verify that the machine is receiving adequate air pressure. Also inspect the air supply system, including the air compressor and air shut-off/activation valve, for conditions that may be restricting airflow.

• TAPE FAULT: The machine is not properly applying or cutting the tape. The fault may originate from either the Top Tape Head or Bottom Tape Head. Inspect the corresponding Tape Head for proper tape threading, tape supply, cutting mechanism operation, and other potential mechanical issues.

PS. If you get a Tape Fault message and you just wonder was the best way to proceed depending on the fault situation, follow the instructions bellow:

No Tape – Insufficient Tape Applied

1. Inspect the most recently processed box and verify the tape application on both the top and bottom surfaces.
2. Replace the tape roll if the tape supply is depleted or insufficient.
3. Check and adjust the tape tension as required.

No Cut – Tape Not Cut After Box Exit

1. Inspect the most recently processed box and verify the tape application on both the top and bottom surfaces.
2. Clean the Tape Head cutting blade and remove any tape residue or debris.
3. Check and adjust the tape tension as required.

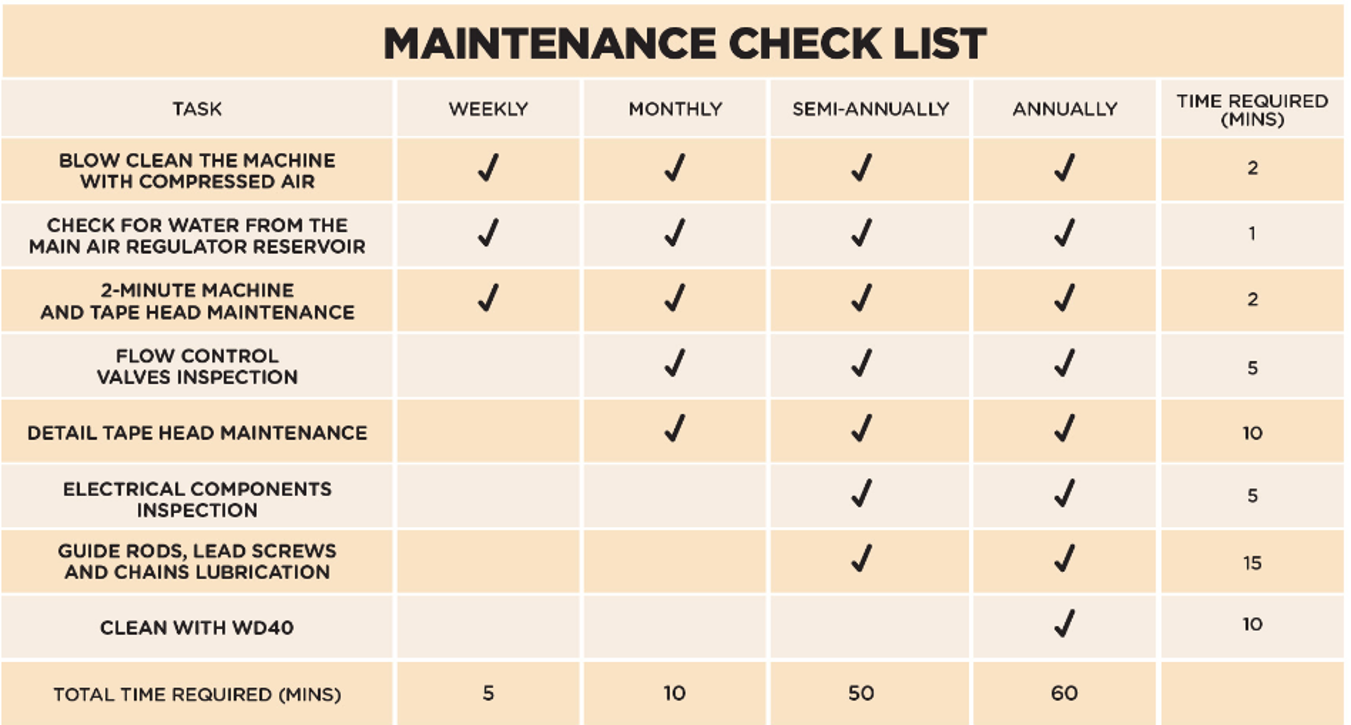

MAINTENANCE CHECK LIST

​​
