INTRODUCTION

Maintenance is essential to ensure the efficient and long-lasting operation of industrial equipment such as L-Sealers. BPX Solutions offers a detailed tutorial on general maintenance for these machines, providing a comprehensive guide to optimize their performance.

Maintenance Benefits: Regular maintenance prevents costly failures, extends the lifespan of machines, and improves workplace safety. In this article, we will explore BPX Solutions' tutorial, highlighting best practices to ensure optimal performance of L-Sealers.

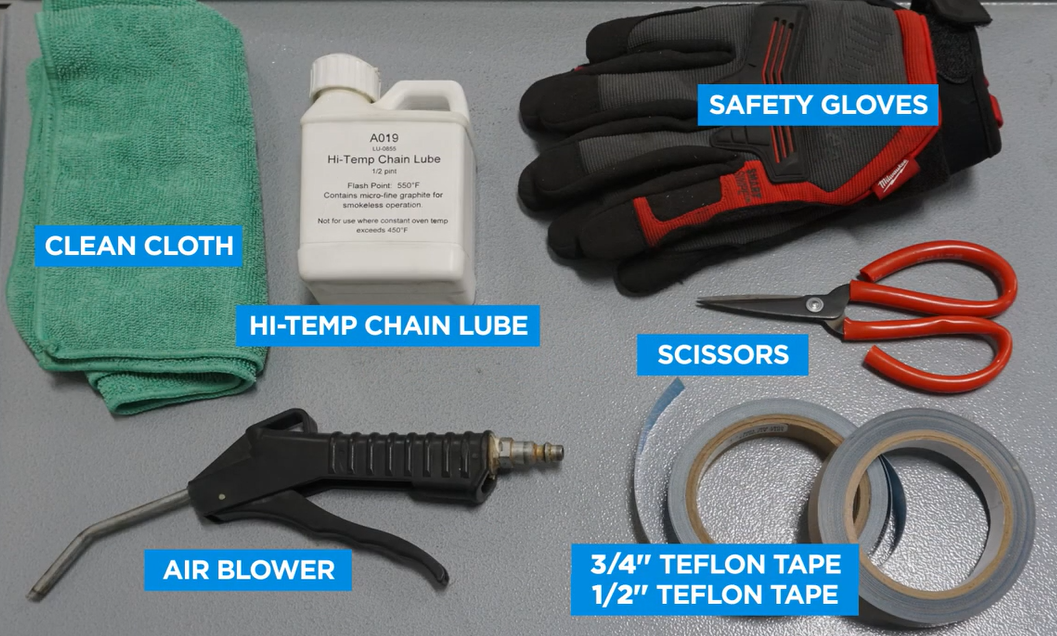

REQUIRED TOOLS

To effectively carry out maintenance, the following tools are necessary:

• Clean cloth
• Safety gloves
• Scissors
• Air blower
• 1/2 and 3/4 Teflon tape
• High-temperature chain lubricant

MAINTENANCE PROCEDURE

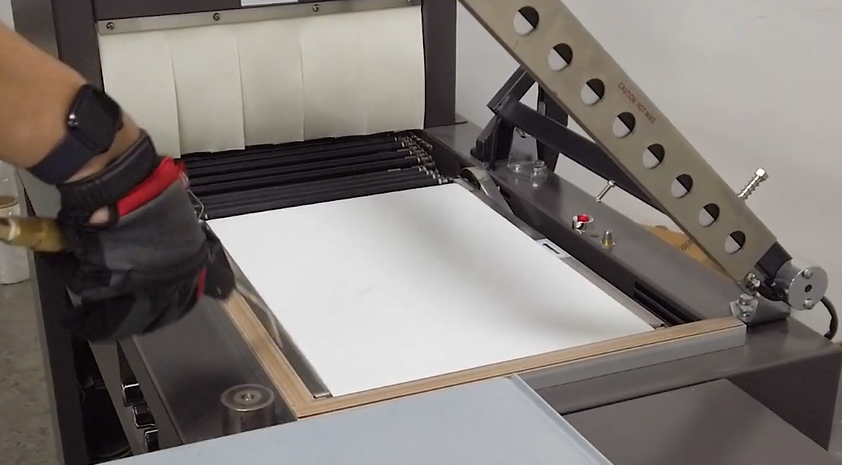

Before beginning any maintenance tasks, it is crucial to blow air around the machine using a dry air blower. Pay special attention to all moving parts of the machine to remove accumulated dust and debris. This initial step ensures a clean environment for safe and effective maintenance.

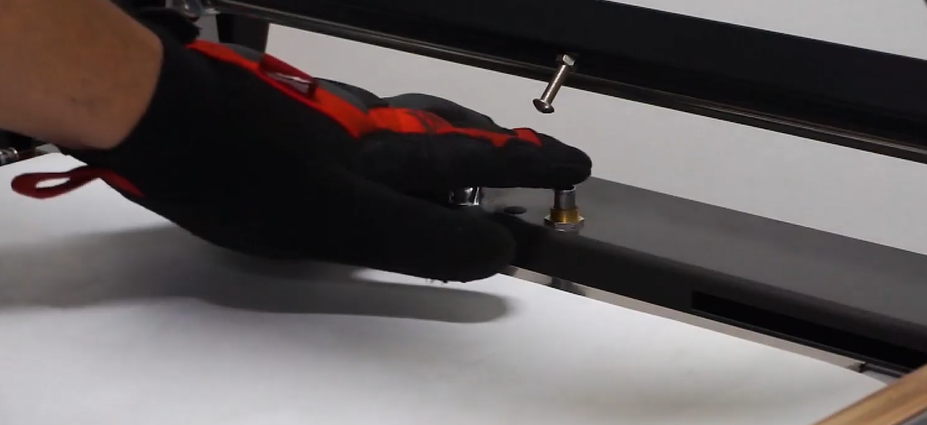

Once the blowing is complete, safety gloves should be worn for the following activities. Press and hold the limit switch a few times to warm up the blade.

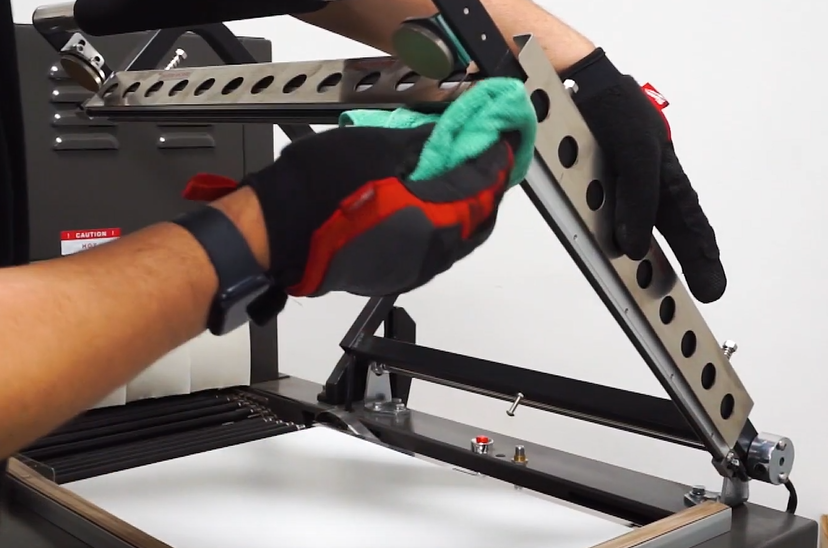

Then, using a clean cloth, lift the clamp and clean the blade to remove any excess plastic buildup. This process ensures precise cutting and reduces blade wear, maintaining machine efficiency.

It is important to remember that regular maintenance ensures optimal operation of industrial equipment, prolonging their lifespan and minimizing unplanned downtime. By following these steps and using the appropriate tools, L-Sealers can be kept in optimal condition for efficient and safe production.

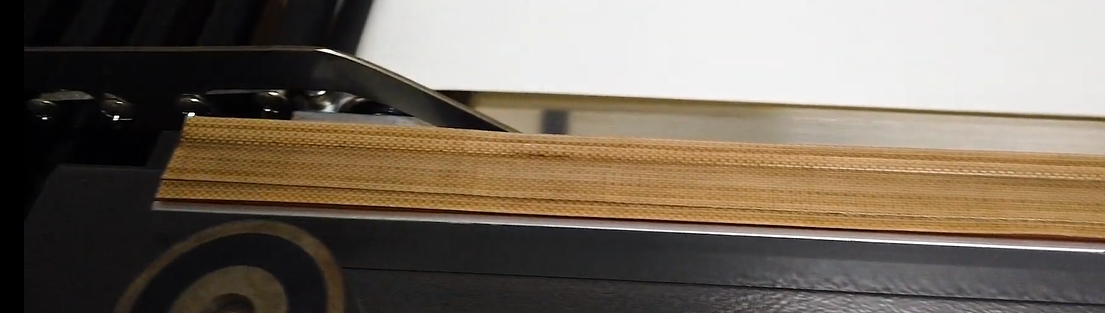

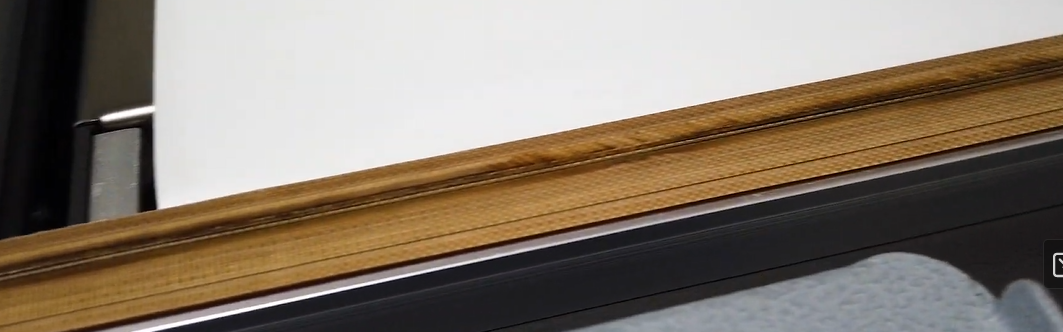

After completing the aforementioned activities, the next step is to inspect the Teflon in the machine.

If it is observed to be burnt during inspection, it will be necessary to remove and replace it with a new one.

To remove it, the Teflon tape must be removed from the seal pad. If the seal pad is found to be in good condition upon removing the Teflon tape, simply place it back in its place. However, if the seal pad is damaged, it must also be replaced.

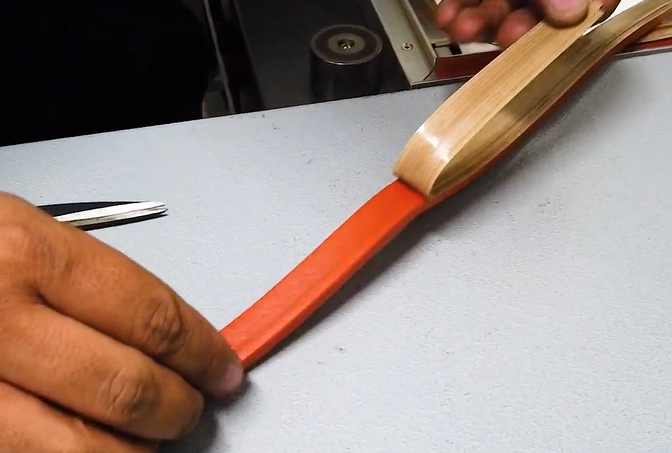

Next, apply the Teflon tape. Start by using the 3/4 Teflon tape on the seal pads. Ensure that when applying the Teflon tape.

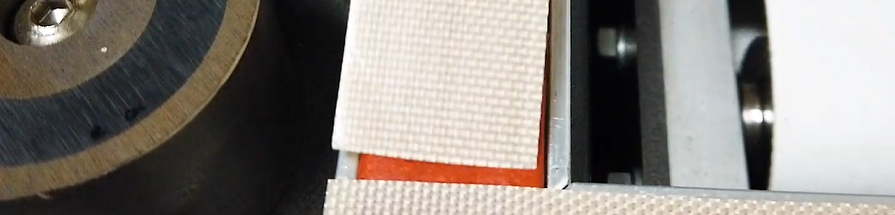

Ensure that when applying the Teflon tape, no overlap of the seal pad occurs.

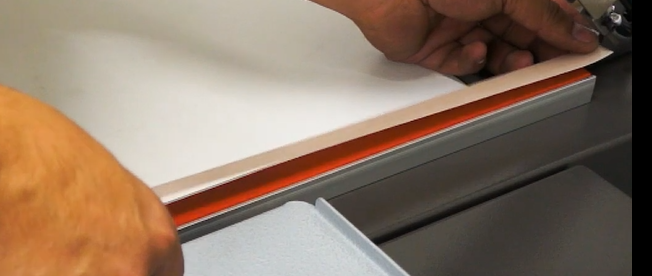

Then, use the 1/2 Teflon tape, placing it as centrally as possible on the seal pad and remove any excess. This process ensures optimal and uniform sealing during machine operation.

Maintenance on the chain: The next step is to lubricate the chain. To lubricate the chain, high-temperature oil must be used. Follow these steps:

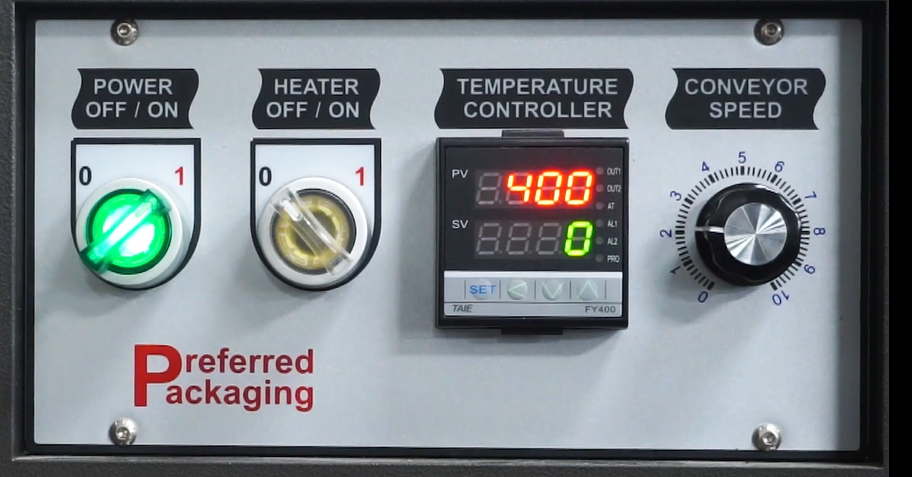

1. Turn on the shrink tunnel.

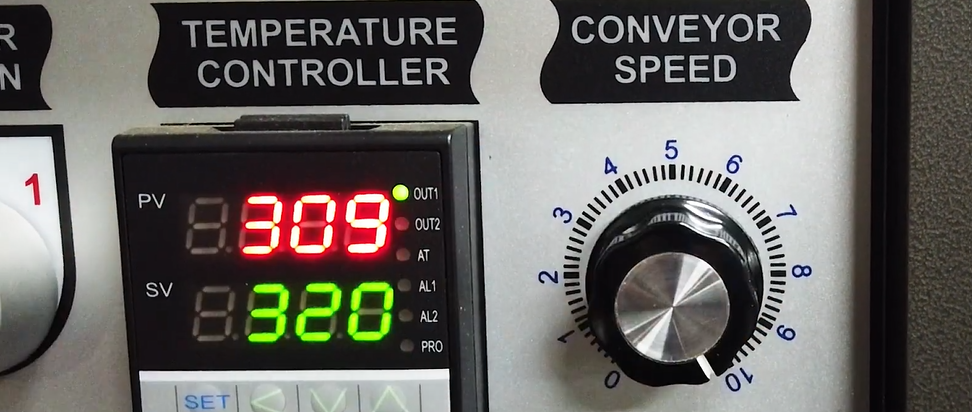

2. Increase the conveyor speed to the maximum to allow for continuous and efficient movement of the chain during the lubrication process.

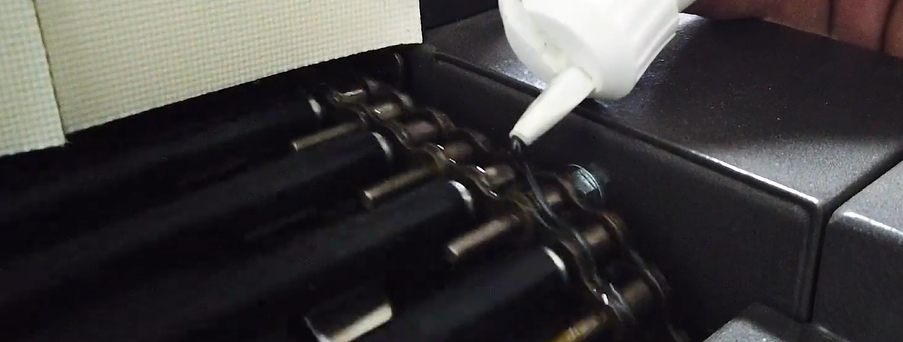

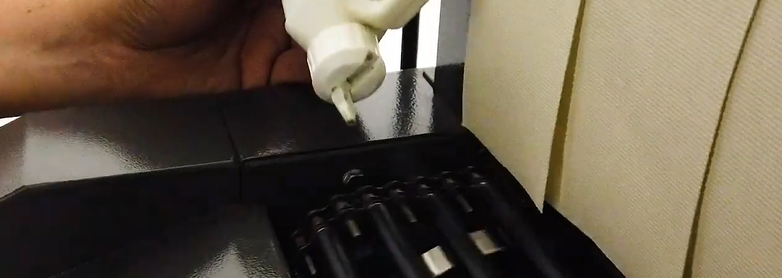

3. Apply the oil to the chain evenly and continuously. Ensure that the entire chain is properly lubricated.
4. Let the chain complete a full rotation while continuing to apply the oil. This ensures that the oil is evenly distributed throughout the chain.
5. Repeat the lubrication process on the other chain following the same steps.

Proper chain lubrication is essential to ensure smooth and efficient machine operation, as well as to prolong its lifespan. By following these steps carefully and meticulously, it is ensured that the chain is properly lubricated, contributing to optimal performance of the L-Sealers.

CONCLUSION

It is fundamental to understand that the maintenance of L-Sealers is closely related to their usage. In cases of high machine usage, it is recommended to perform weekly maintenance to ensure optimal performance and prevent potential failures. By maintaining a regular maintenance routine, the efficiency and durability of the equipment are ensured, which in turn contributes to the productivity and quality of the final product in the packaging process.
