Introduction

Maintenance is the cornerstone of ensuring the optimal performance and longevity of your BestPack® MSD/MS series carton sealing machines. In this comprehensive guide, we will cover essential aspects of machine maintenance, emphasizing safety precautions, lubrication procedures, quick daily maintenance routines, and the recommended spare parts you should have on hand. By adhering to these maintenance practices, you can uphold the efficiency and reliability of your MSD/MS series carton sealing machines, thereby maximizing your operational output and minimizing downtime.

Related Articles:

• Maintenance Schedule For M, R, A, and C-Series

This article contains the following topics:

• Safety Precautions
• Lubrication
• Daily 2 Minute Preventive Maintenance
• Recommended Spare Parts

Safety Precautions

Prioritize safety above all else. Always ensure that the machine is turned off and locked out before initiating any maintenance tasks. Adhere to all safety guidelines and precautions outlined in the machine's documentation to prevent accidents and injuries.

Lubrication

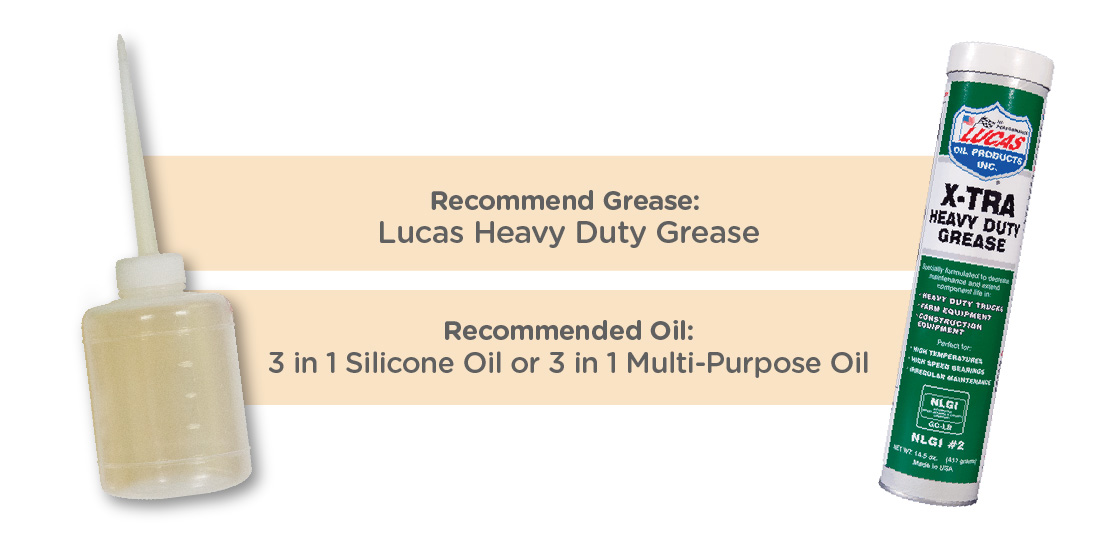

It is important to lubricate all moving parts on the machine to keep it in top operating condition.

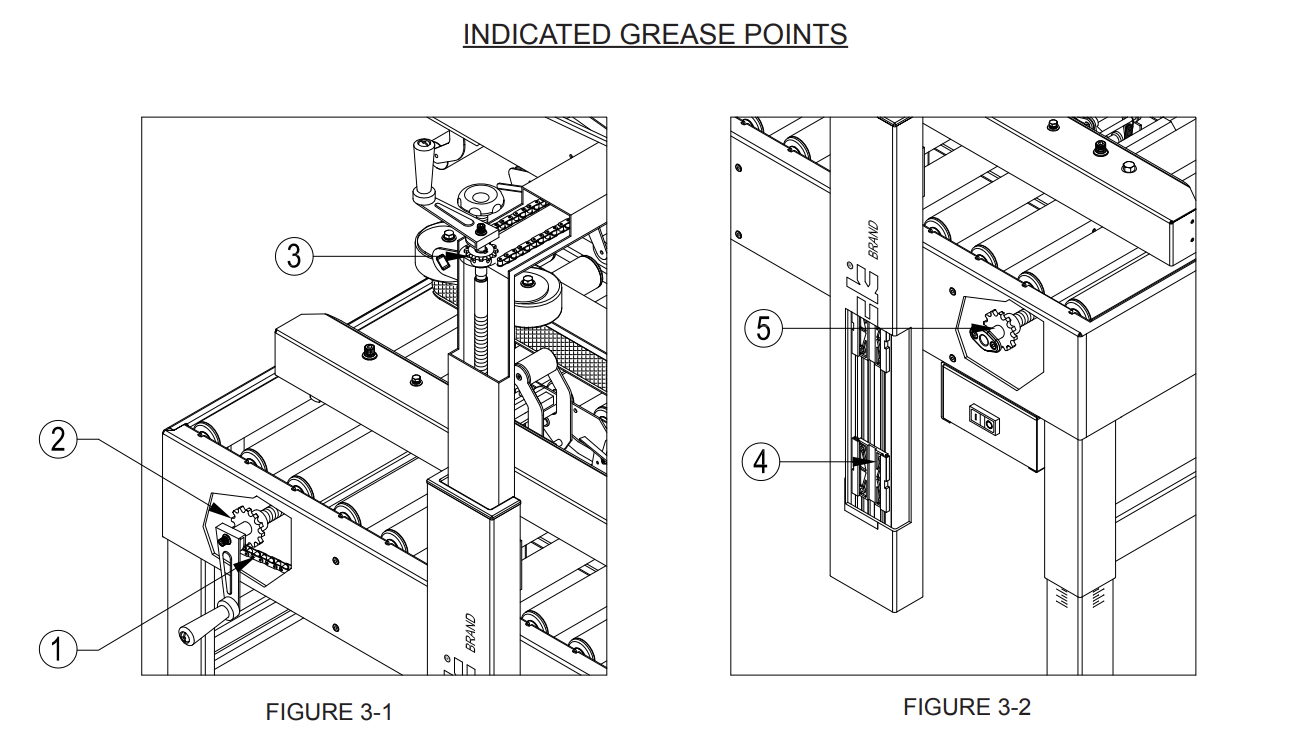

Lubricate the following areas with grease or oil (as indicated) every two months.

Proper lubrication of moving parts is essential to the machine's smooth functioning and longevity. Follow these lubrication guidelines to maintain optimal performance:

1. Chain Drive Mechanism for Width Adjustment: Apply appropriate grease to the chain drive mechanism involved in width adjustment. [Fig 3-2]
2. Spindle Screw Mechanism for Width Adjustment: Lubricate the spindle screw mechanism used for width adjustment with grease. [Fig 3-2]
3. Chain Drive Mechanism for Height Adjustment: Grease the chain drive mechanism responsible for height adjustment. [Fig 3-1]
4. Spindle Screw Mechanism for Height Adjustment: Apply grease to the spindle screw mechanism associated with height adjustment. [Fig 3-1]
5. Sprocket for Spindle Screw Mechanism (Width Adjustment): Use suitable oil to lubricate the sprocket connected to the spindle screw mechanism for width adjustment. [Fig 3-2]

Daily 2 Minute Maintenance

1. Clean the Machine:

Cleaning the machine is not just about aesthetics; it's about ensuring that all moving parts function optimally. Follow these steps to keep your machine clean:

• Use Dry Air: Employ a dry air blower to remove dust, debris, and particles from various parts of the machine. Pay special attention to areas where components interact, such as rollers and chains.
• Moving Parts: Ensure that all moving parts, including belts and chains, are free from dust and foreign particles. This prevents friction, reduces wear and tear, and maintains the machine's efficiency.

2. Clean the Blade:

The cutting blade is a critical component of the machine's sealing process. Proper cleaning ensures consistent and precise cutting. Here's how to clean the blade effectively:

• Wipe with Cloth: Carefully wipe down the cutting blades using a clean cloth. This removes any residual adhesive, tape residue, or plastic film that might have adhered to the blade during sealing.
• Stubborn Residue: If you encounter stubborn residue, consider using a solvent like WD-40 or Zylene. Apply the solvent to a cloth and gently rub the blade to dissolve and remove the residue. However, be cautious not to let the solvent come into contact with rubber rollers.
• Vaseline Application: As a final step, apply a thin layer of Vaseline to the blade. This provides a protective coating that prevents buildup and ensures smooth cutting during subsequent operations.

3. Water Reservoir (If Applicable):

If your carton sealer utilizes air, checking and managing the water reservoir is essential. Moisture accumulation can impact air quality and overall machine performance. Follow these steps to maintain the water reservoir:

• Check for Moisture: Inspect the water reservoir for any accumulated moisture. If water is present, it's essential to address it promptly.
• Bleed Off Moisture: If there's moisture in the water reservoir of the air regulator, use the provided button to release accumulated moisture. Push the button located at the bottom of the glass container on the main regulator to drain the water.

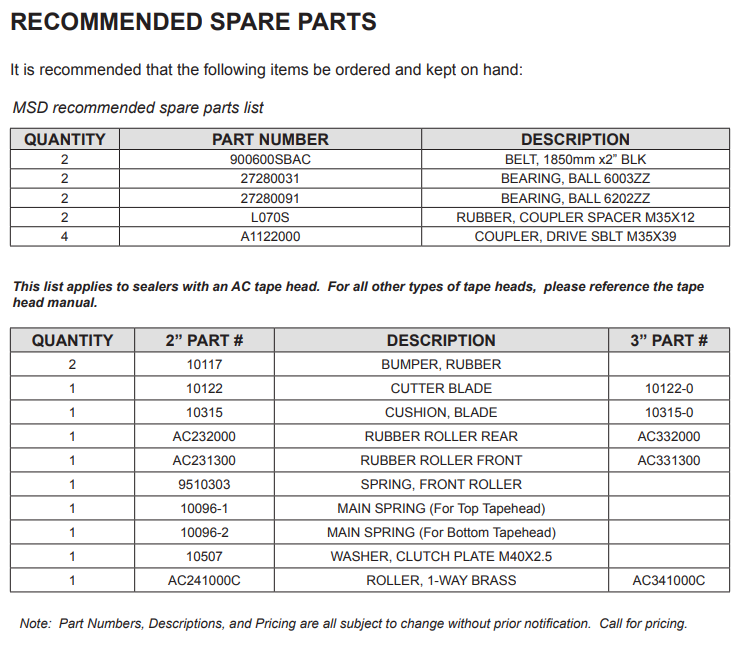

Recommended Spare Parts

By adhering to these maintenance practices, you'll be ensuring the consistent performance and longevity of your BestPack® carton sealer, ultimately contributing to smooth operations and enhanced productivity.
