Maintenance Schedule For M, R, A, and C-Series

October 02, 2024 20:14
Updated

Maintenance For M, R, A, and C-Series

It is essential to do maintenance on the machine to keep it in top operating condition. Periodically lubricate the following areas with grease or oil.

ZenDesk_Maintenance

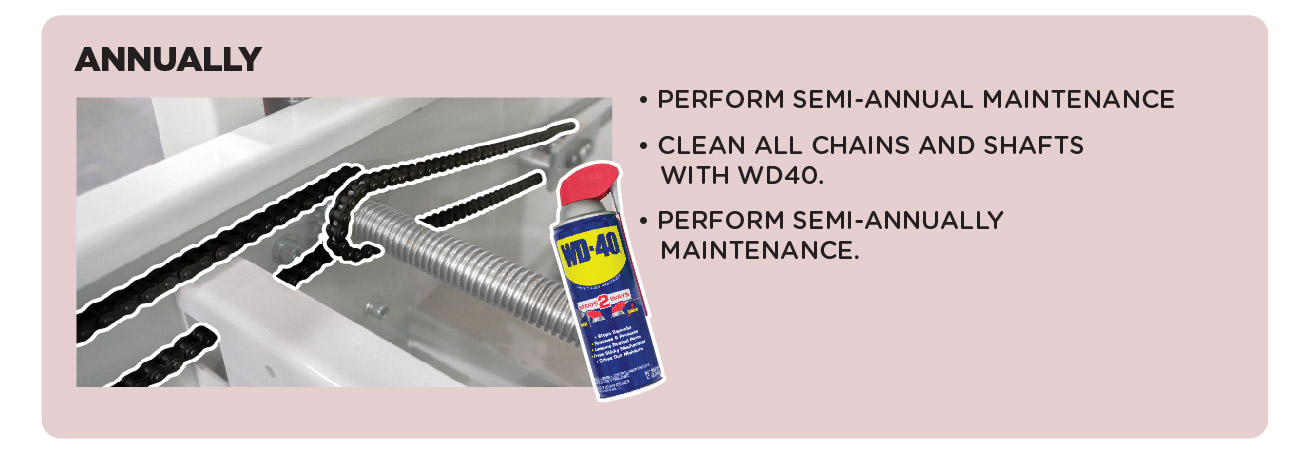

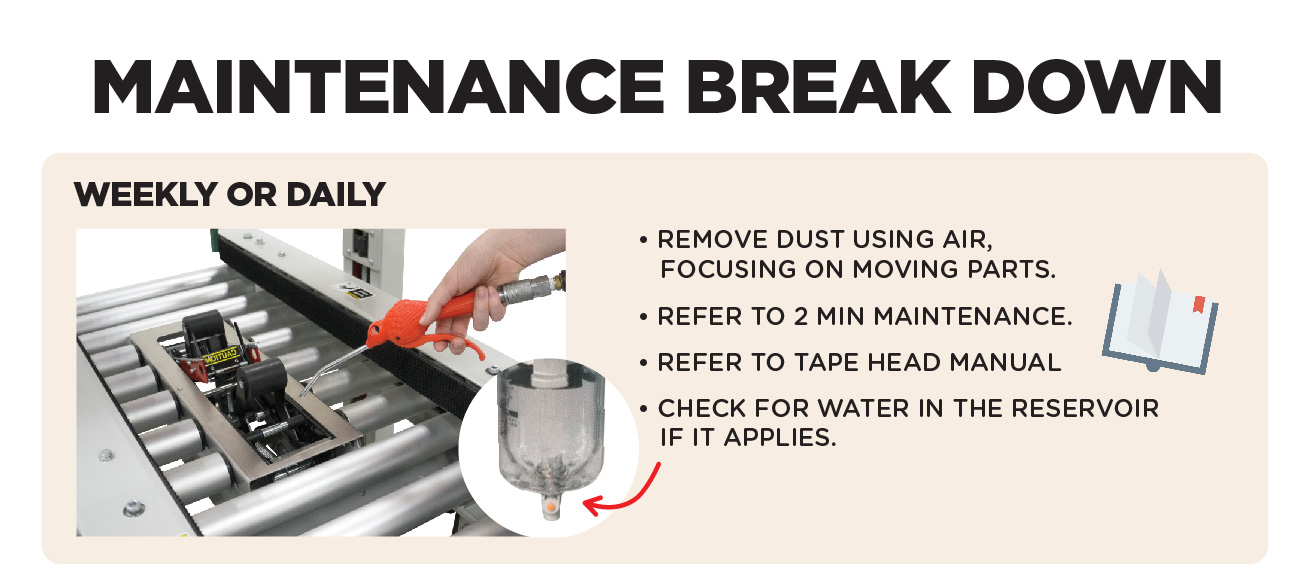

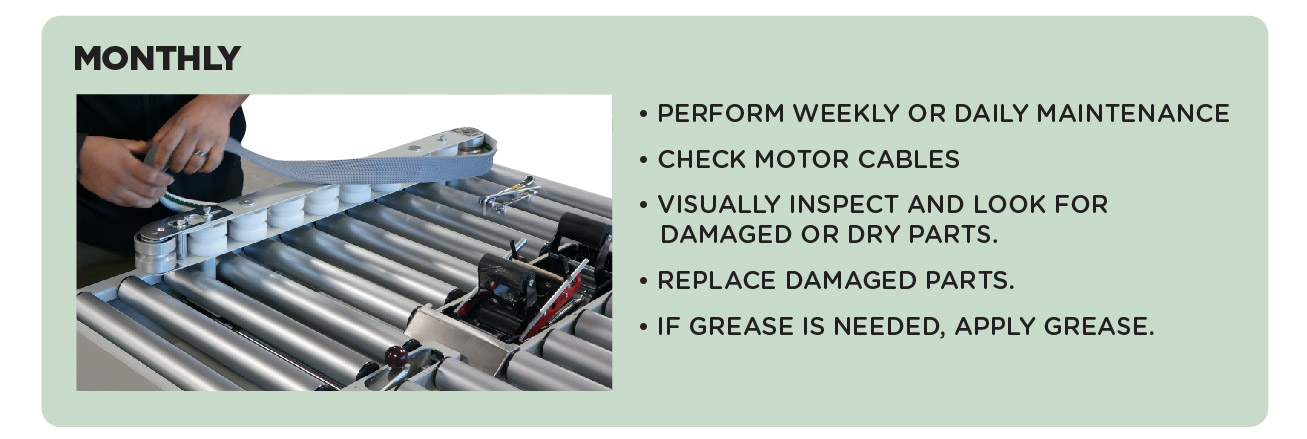

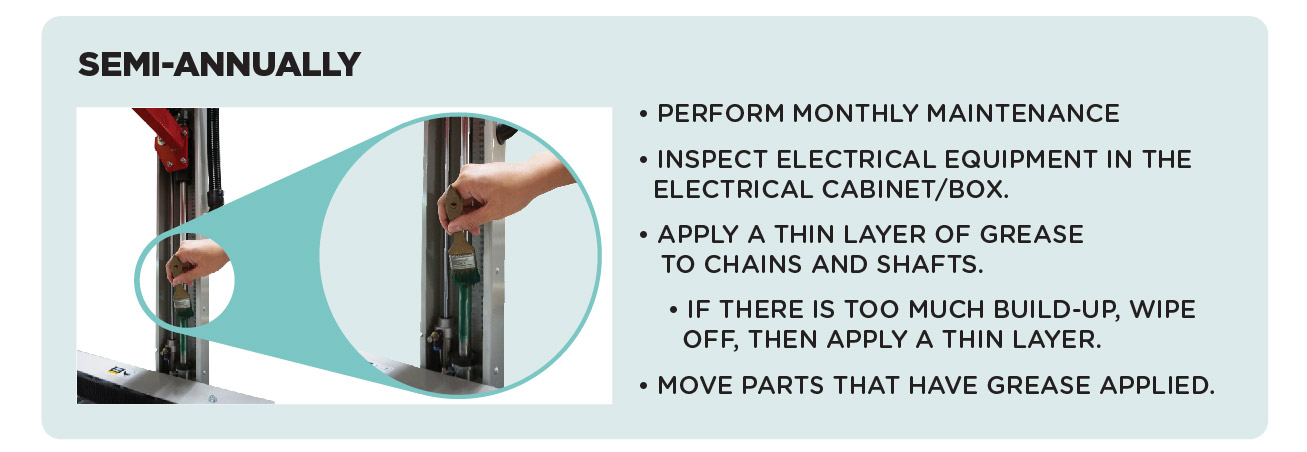

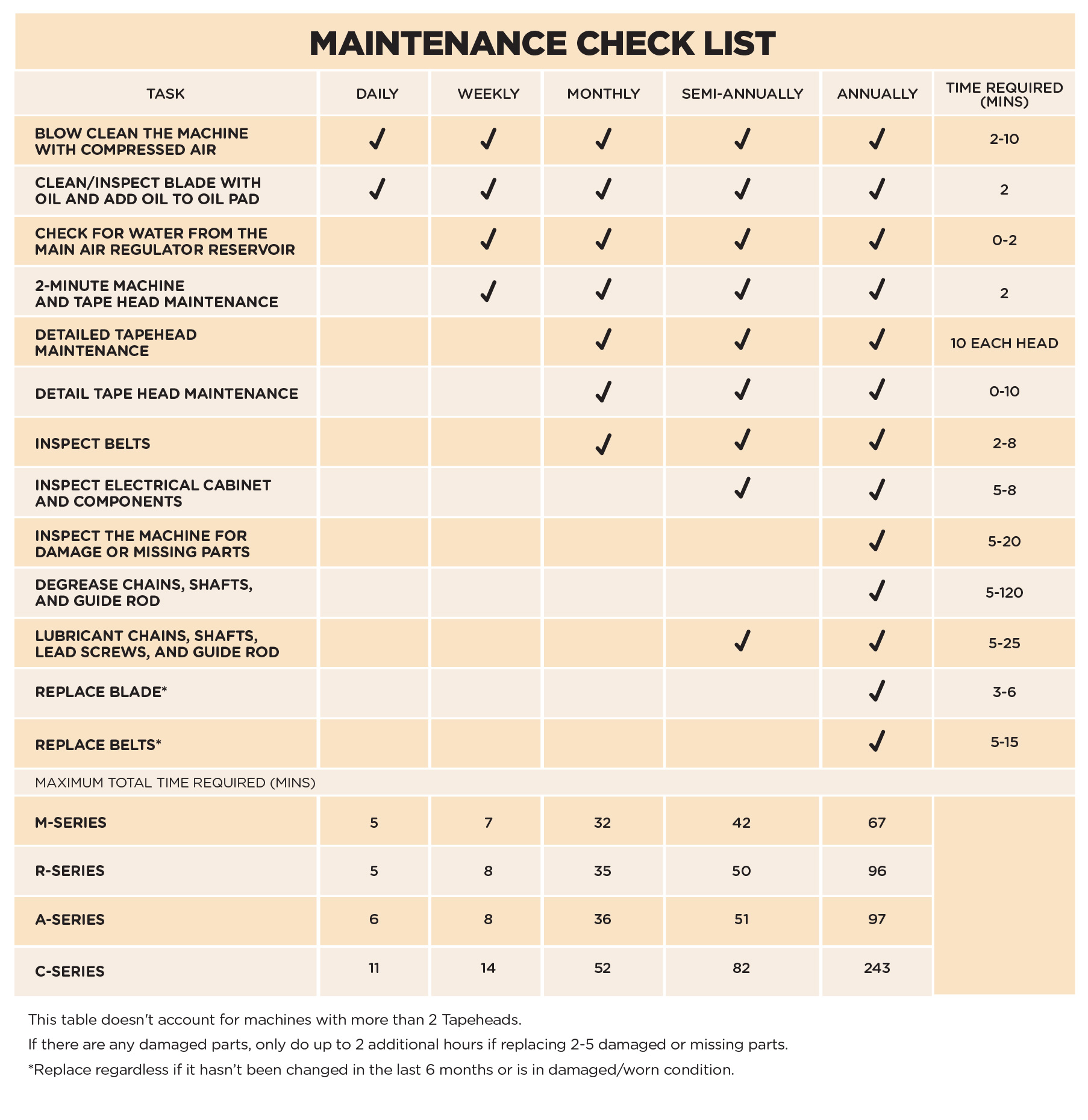

ZenDesk_Maintenance Schedule- M R A C-Series-04.jpg

ZenDesk_Maintenance Schedule- M R A C-Series-06.jpg

ZenDesk_Maintenance Schedule- M R A C-Series-07.jpg

ZenDesk_Maintenance Schedule- M R A C-Series-08.jpg
