Lubrication Points:

It is important to lubricate all moving parts on the machine to keep it in top operating condition. Lubricate the following areas with grease or oil (as indicated Fig. 8-1) periodically.

Use 30 weight machine oil to lubricate moving parts as illustrated in Fig. 8-1 once a week. (Wipe or blow clean prior to lubrication).

NOTICE：DO NOT OVER-LUBE.

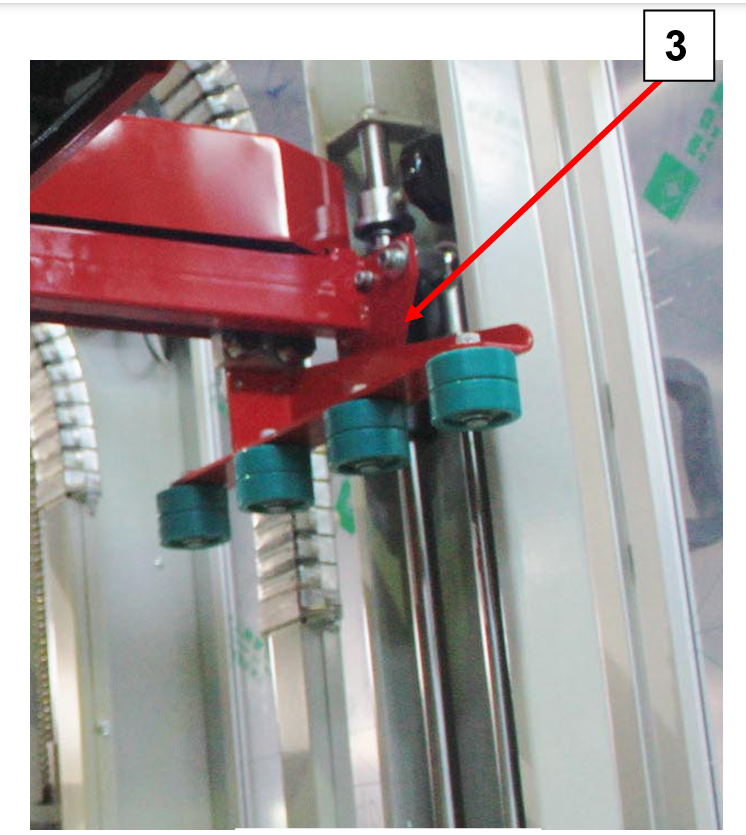

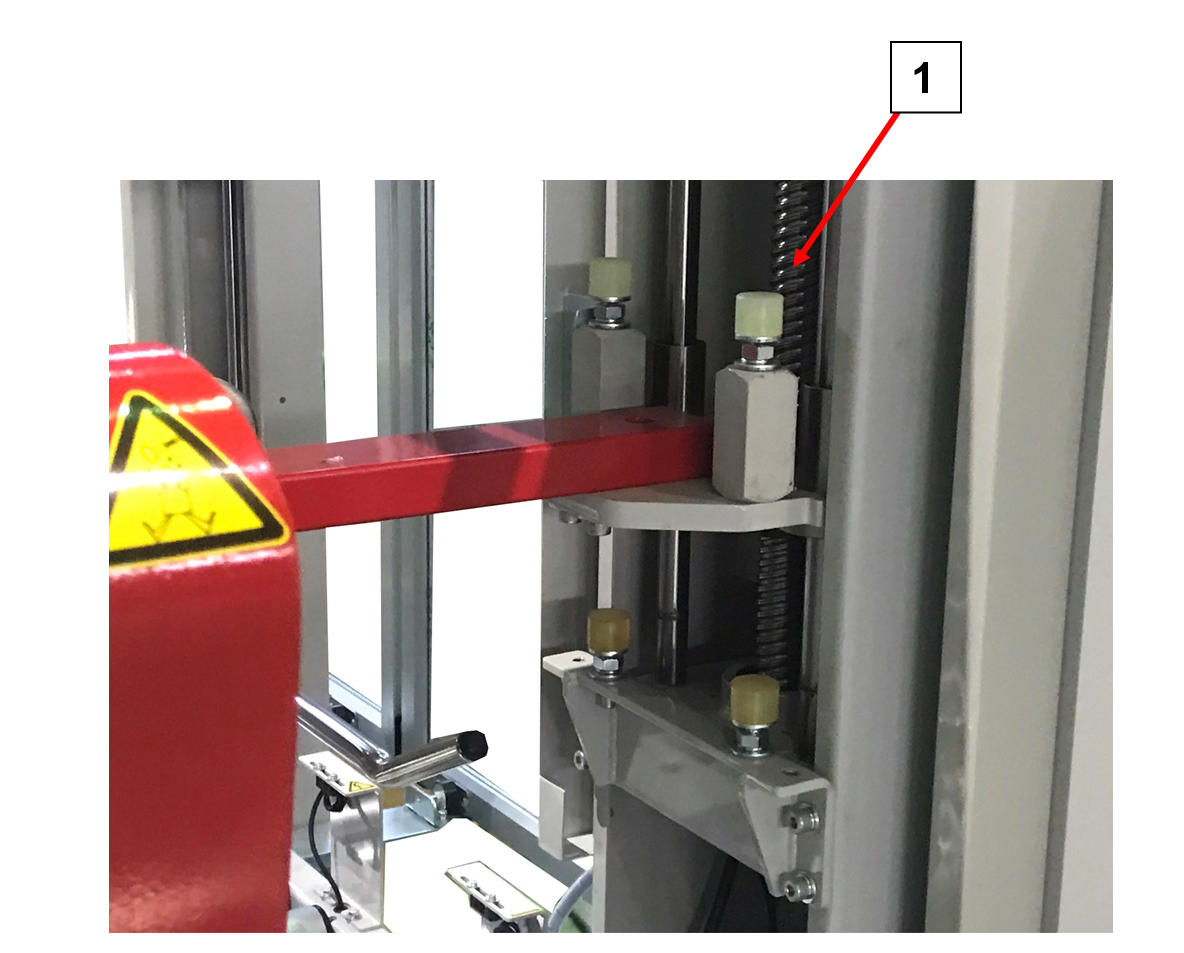

Fig. 8-2   Fig. 8-3

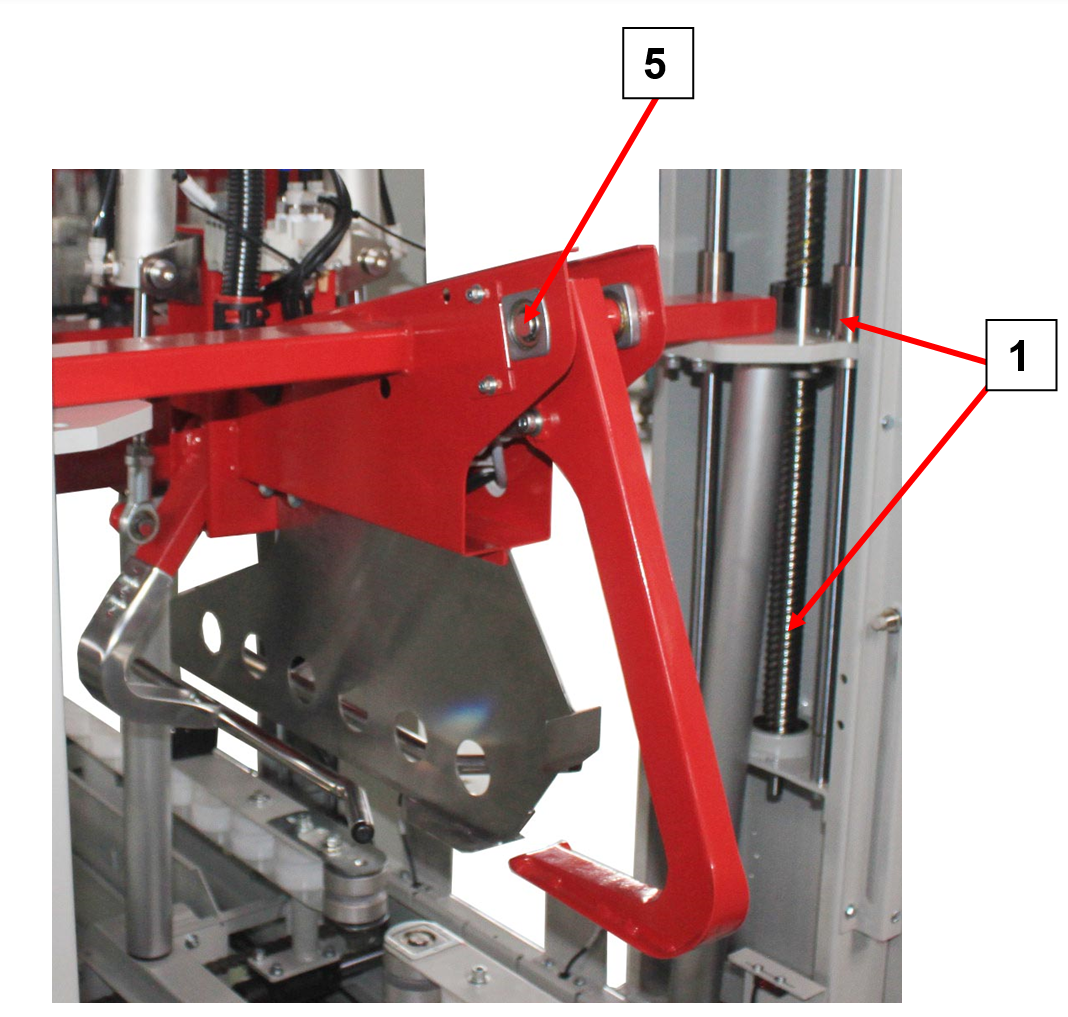

Fig. 8-4

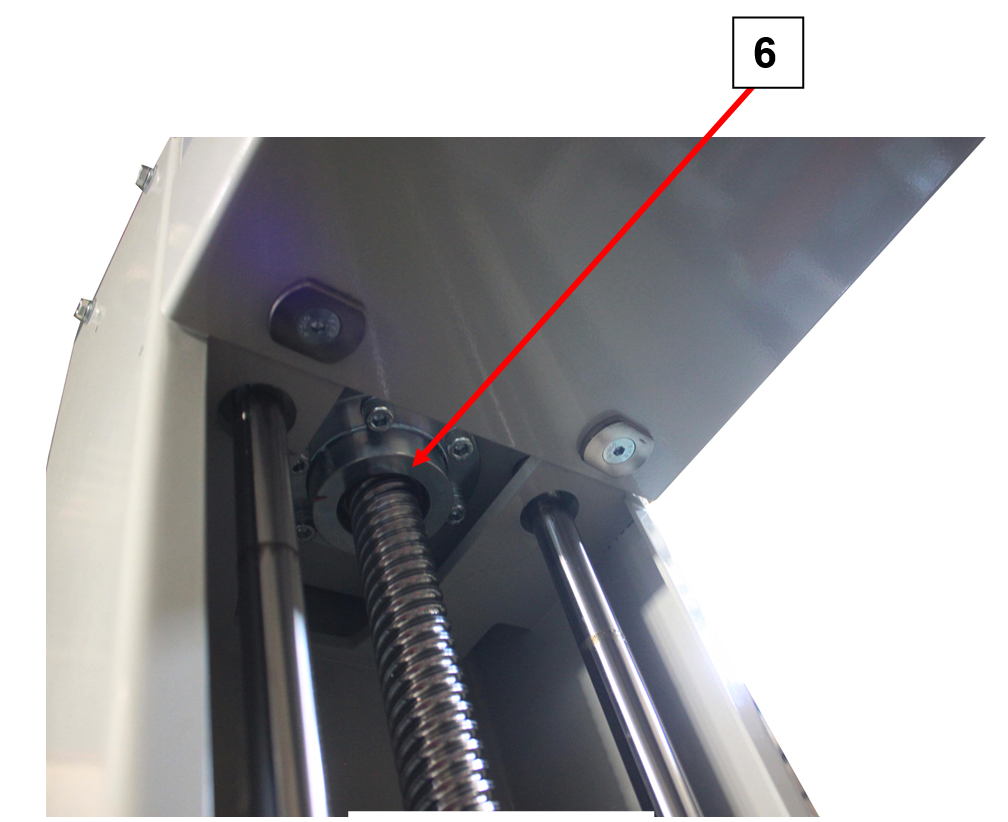

Fig. 8-5

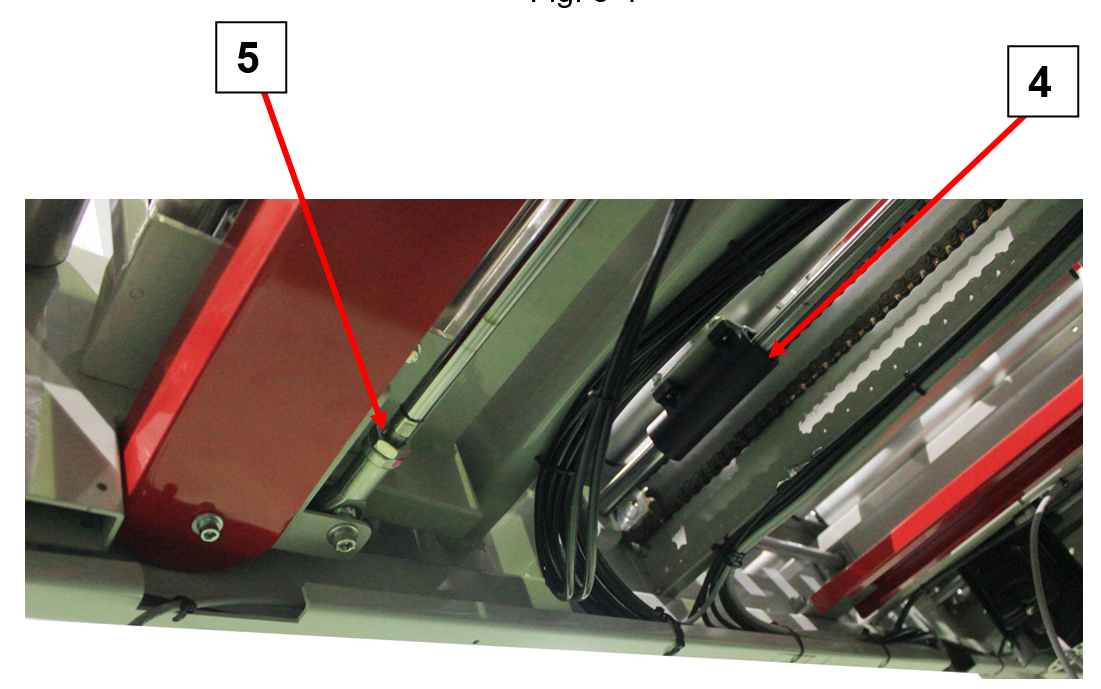

Fig. 8-6

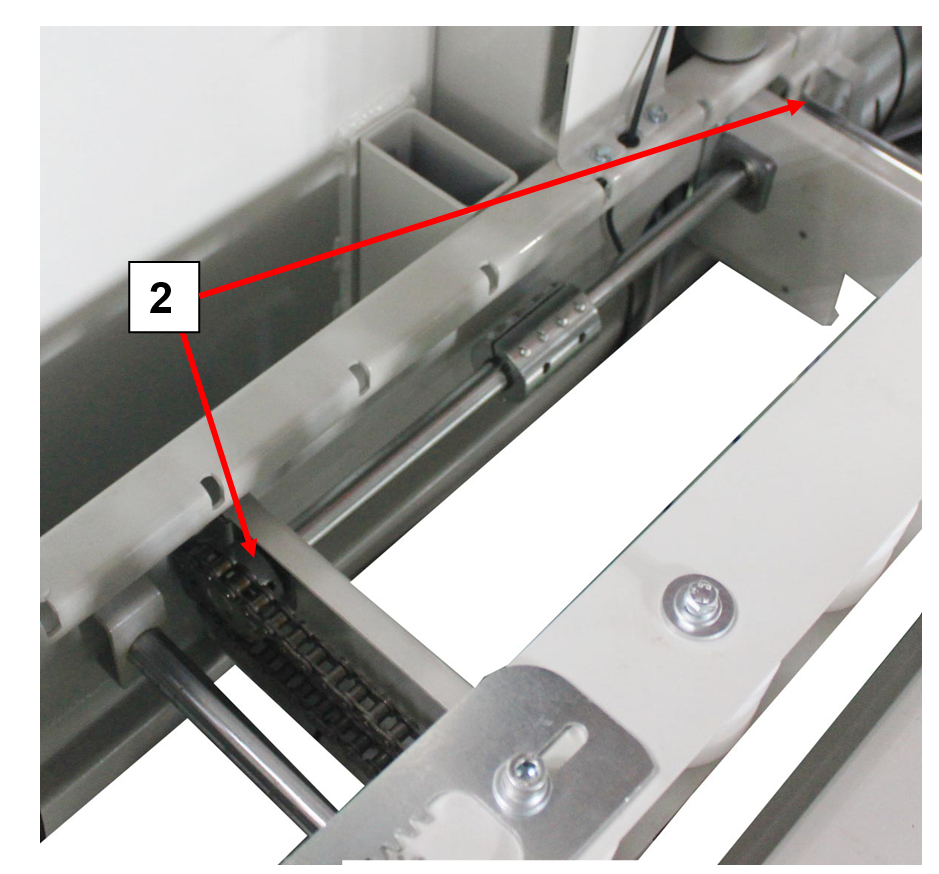

Fig. 8-7
