Introduction

Maintenance is the cornerstone of ensuring the optimal performance and longevity of your BestPack AS series carton sealing machines. In this comprehensive guide, we will cover essential aspects of machine maintenance, emphasizing safety precautions, lubrication procedures, quick daily maintenance routines, and the recommended spare parts you should have on hand. By adhering to these maintenance practices, you can uphold the efficiency and reliability of your AS series carton sealing machines, thereby maximizing your operational output and minimizing downtime.

Related Articles:

• Maintenance Schedule For M, R, A, and C-Series
• Daily 2-Minute Maintenance

This article contains the following topics:

• Safety Precautions
• Lubrication
• Points of lubrication as below
• Recommended Spare Parts

Safety Precautions

Prioritize safety above all else. Always ensure that the machine is turned off and locked out before initiating any maintenance tasks. Adhere to all safety guidelines and precautions outlined in the machine's documentation to prevent accidents and injuries.

Lubrication

It is important to lubricate all moving parts on the machine to keep it in top operating condition.
Lubricate the following areas with grease or oil (as indicated) every two months.

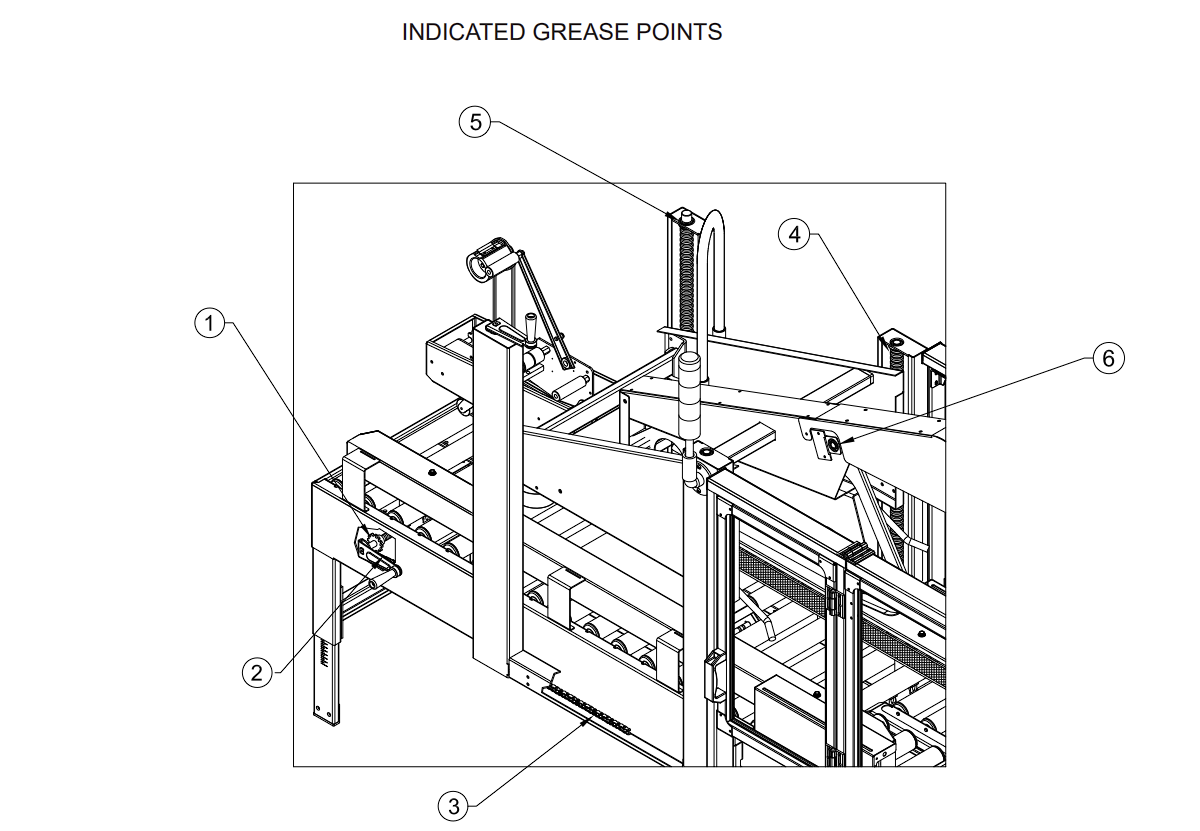

Points of lubrication as below

Proper lubrication of moving parts is essential to the machine's smooth functioning and longevity. Follow these lubrication guidelines to maintain optimal performance:

1. Chain Drive Mechanism: Apply GREASE to the chain drive mechanism responsible for width adjustment.
2. Spindle Screw Mechanism: GREASE should also be used to lubricate the spindle screw mechanism for width adjustment.
3. Chain Drive Mechanism: To ensure the height adjustment functions flawlessly, apply GREASE to the chain drive mechanism.
4. Bearing for Spindle Screw Mechanism (Width Adjustment): Use OIL to lubricate the bearing associated with the spindle screw mechanism for width adjustment.
5. Bearing for Flap Folding Arm Assembly: Keep the bearing for the flap folding arm assembly in prime condition with OIL lubrication.

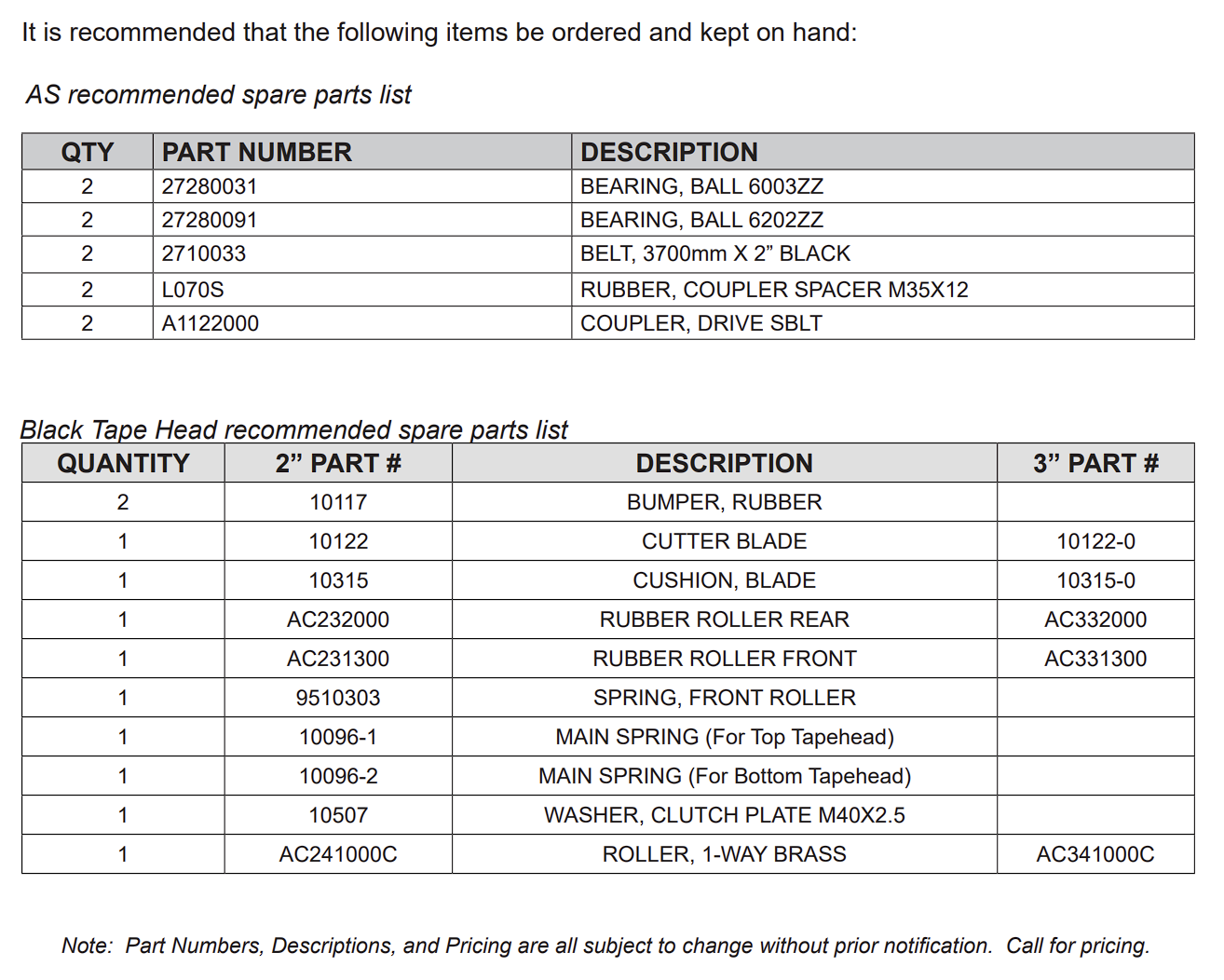

Recommended Spare Parts

By adhering to these maintenance practices, you'll be ensuring the consistent performance and longevity of your BestPack® carton sealer, ultimately contributing to smooth operations and enhanced productivity.
