Installing safety gates on the RS22 is a straightforward process, but it’s essential to follow the provided drawings and instructions closely to ensure proper functionality and safety. This guide will walk you through each step, detailing the necessary drilling, threading, and wiring required for a successful installation.
Required Tools and Materials
Part Number | Part Description | Qty |
2707052 | NUT, HEX M4 | 8 |
2705105 | WASHER, FLAT M4 | 16 |
2703214 | SCREW, ROUND HD M4X25 | 8 |
2701034 | SCREW, SOCKET HD M5X16 | 8 |
2705103 | WASHER, FLAT M5 | 24 |
2705201 | WASHER, SPLIT LOCK M5 | 16 |
2701032 | SCREW, SOCKET HD M5X10 | 16 |
2883101 | RIVET, BLIND M4X10 6-3 | 48 |
- F2360A00-Gates, Safety RS/RQ (Set of 4)
- Rivet gun
- 4.5 mm drill bit
- M5 screws (various types as specified)
- Double stacked terminal blocks
- Rivets (included)
- Limit switch covers (included)
- Safety gate handles (included)
Step 1: Drill Holes on Both Sides of the Top Mast
1.1 Drilling Rivet Holes
- Total Holes: 24 (6 per side)
- Type: Thru holes (no threading required)
- Instructions:

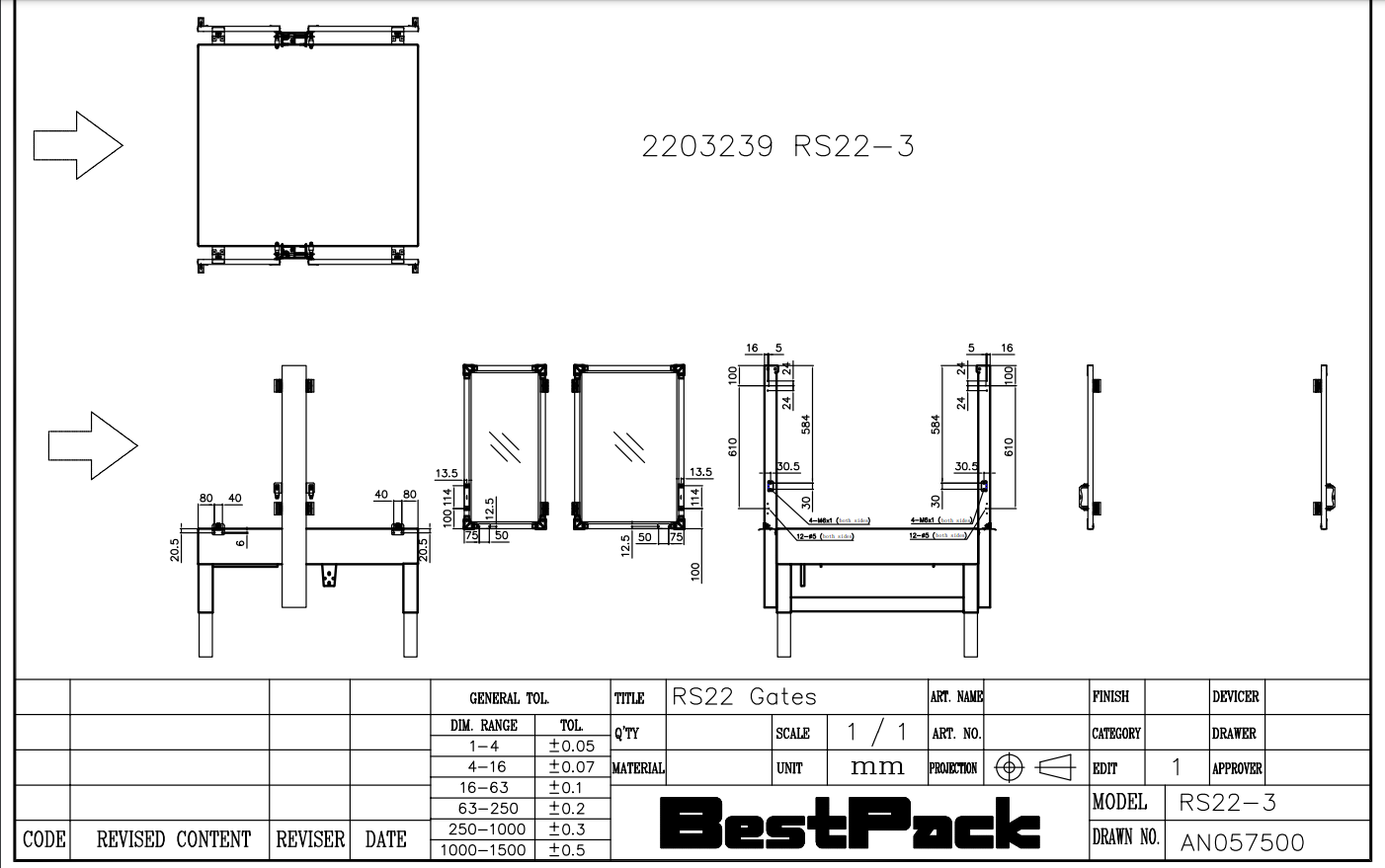

- Using the provided drawing, drill 6 holes on each side of the top mast for rivets.

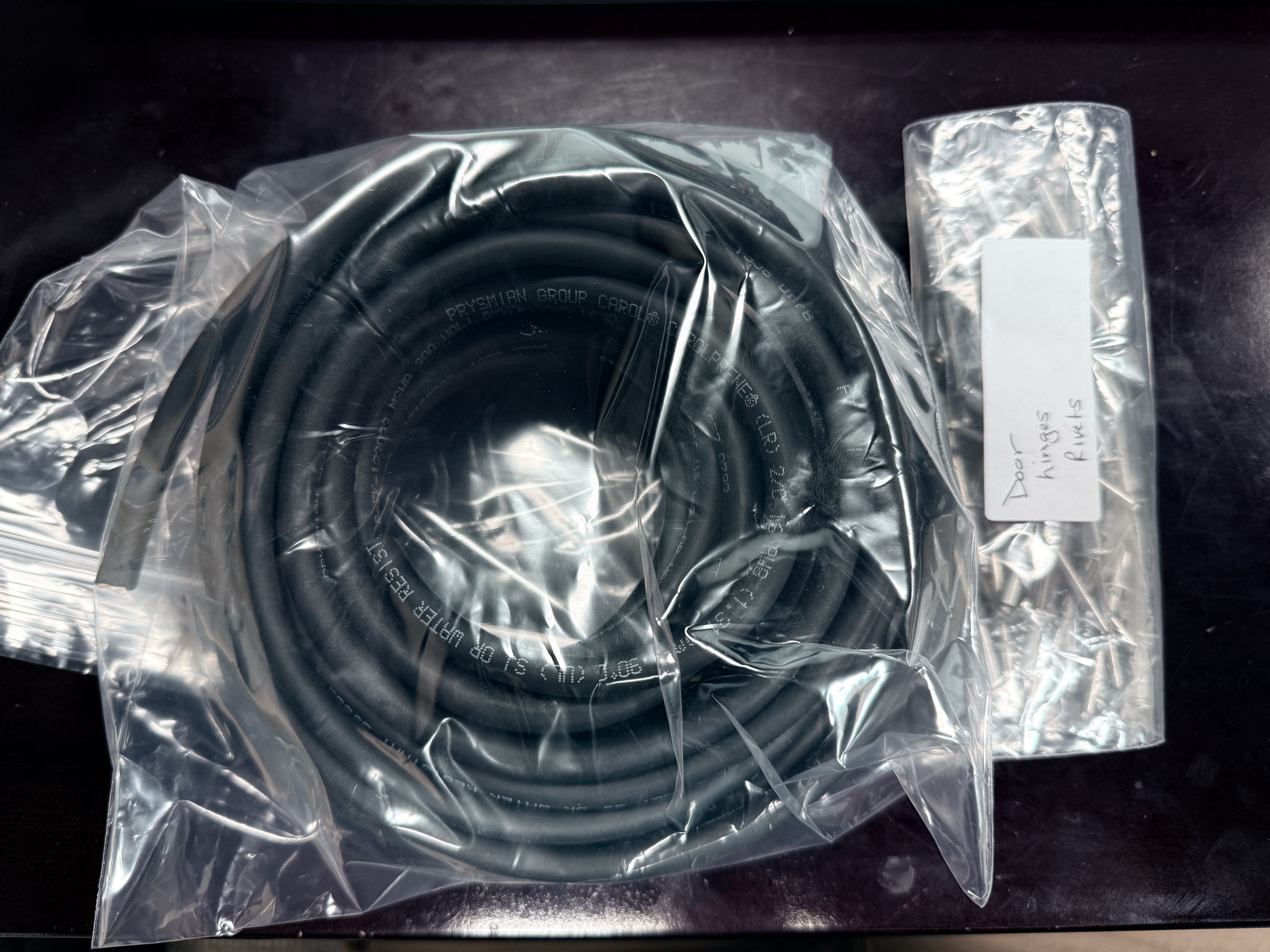

- Use the rivets provided to attach the hinges with a rivet gun.
1.2 Drilling Limit Switch Bracket Holes
- Total Holes: 8 (4 per side)
- Type: Threaded for M5 screws
- Instructions:
- Drill 4 holes on each side of the top mast using a 4.5 mm drill bit, then thread for M5.

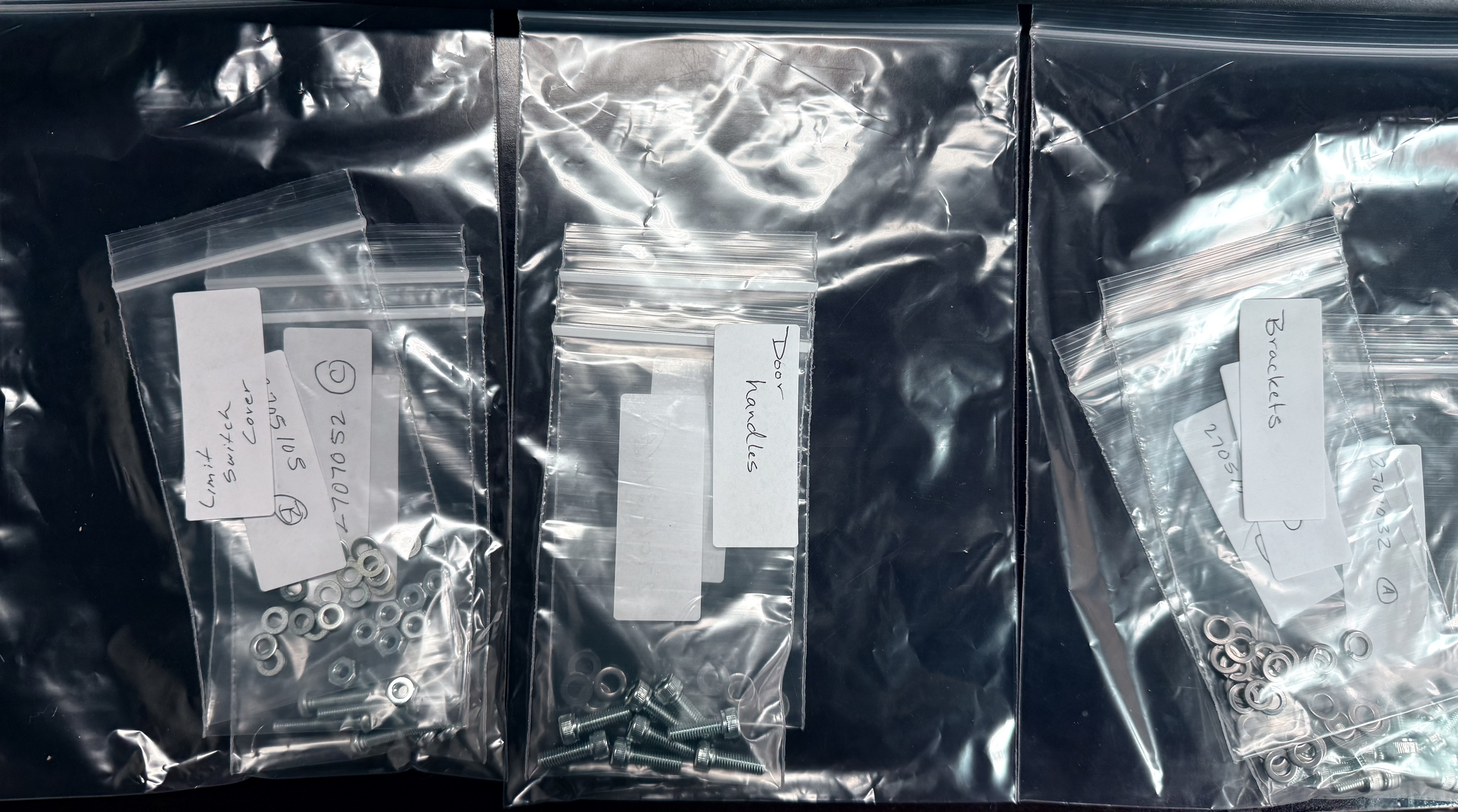

- Mount the limit switch brackets using the screws from the bag labeled "Brackets." Use 2 of A, 2 of B, and 2 of C per bracket.
- Insert the limit switches into the mounted brackets.

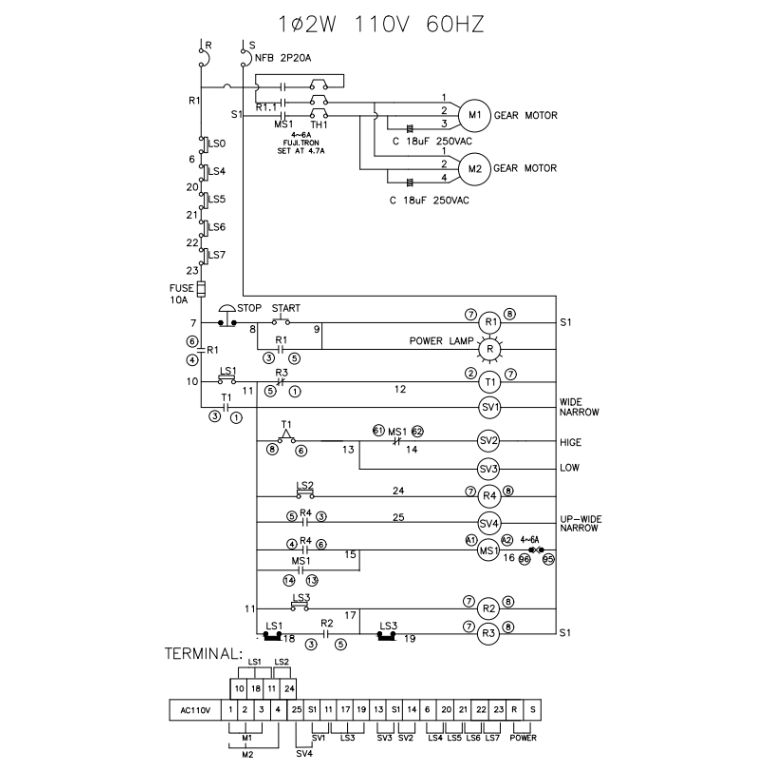

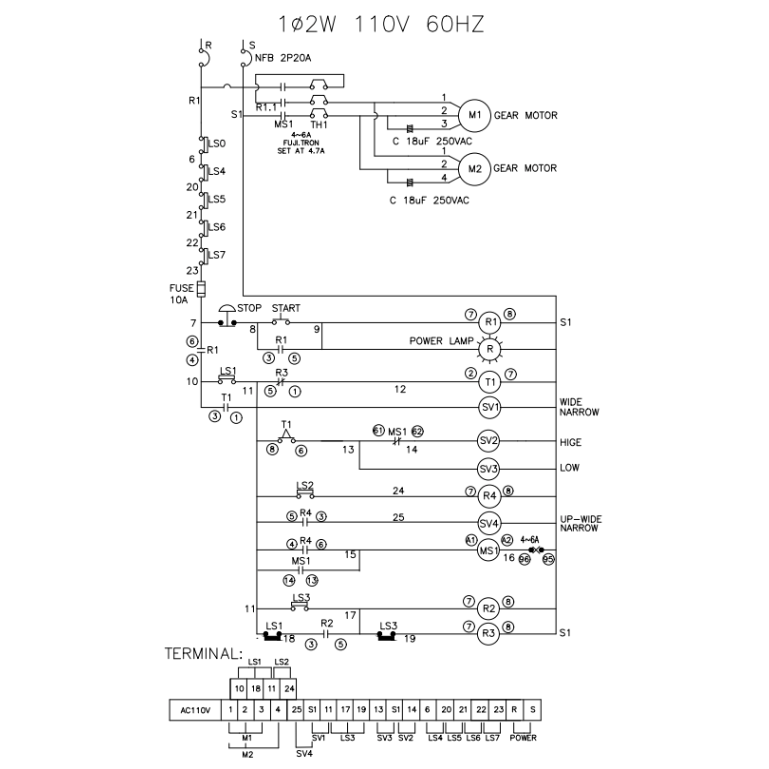

- Wire the limit switches as indicated in the electrical schematic (LS4-LS7), using the normally open configuration.
- Attach the limit switch covers using the screws from the bag labeled "Limit Switch Covers." Use 2 of A, 2 of B, and then 2 of C for each cover. Total screws: 8 of A, 16 of B, and 8 of C.
1.3 Adding Terminal Blocks
- Instructions:
- Install 4 double stacked terminal blocks to accommodate the additional wiring needed for the switches.
Step 2: Drill Holes on Magnet Brackets on Machine Frame
2.1 Drilling Magnet Bracket Holes
- Total Holes: 8
- Type: Threaded for M5 screws
- Instructions:
- Refer to the drawing for the specific locations on the machine frame and drill 8 holes using a 4.5 mm drill bit, then thread for M5.
- Secure the brackets using the extra screws from the bag labeled "Brackets," applying 2 of A, 2 of B, and 2 of C per bracket.
Step 3: Drill Holes on Doors for Handles
3.1 Drilling Handle Holes
- Total Holes: 8 (2 per door)
- Type: Threaded for M5 screws
- Instructions:
- Drill 2 holes on each door for the handles using a 4.5 mm drill bit and thread for M5 screws.
- Use the screws provided in the bag labeled "Door Handles," requiring 2 of A and 2 of B for each handle.
Conclusion
Following these steps will ensure that the safety gates on your RS22 are installed correctly and securely. Always refer back to the provided drawings for precise measurements and locations
