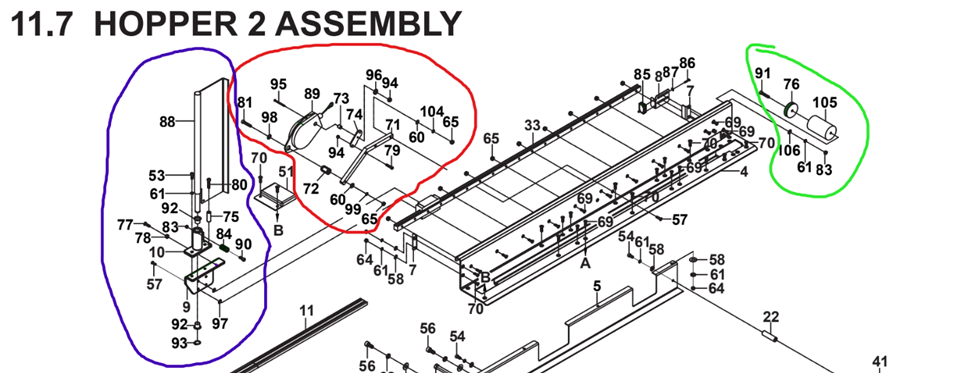

Here is how to Install the CFH. As you can see, it is broken into three parts

• The Roller Assembly. (Green)
• The Push Arm Assembly is Left and Right. (Purple)
• Spring Assembly(Red)

1. Part 1: Roller Assembly (Green)

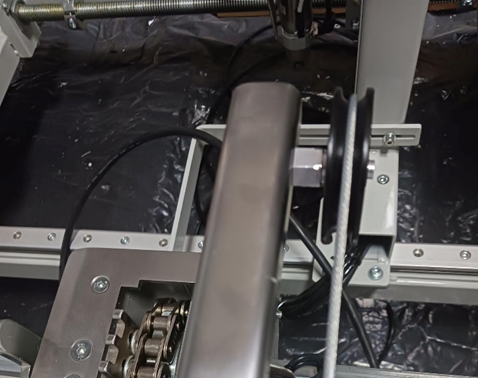

2. • Locate the Hole for the Roller Assembly at the exit of the hopper.

• Insert the roller assembly into the hole, ensuring the washer, lock washer, and nut are placed inside in that order.

2. Part 2: Push Arm Assembly (Left and Right) (Purple)

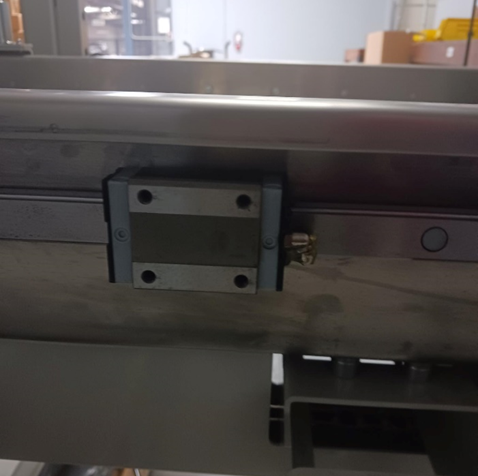

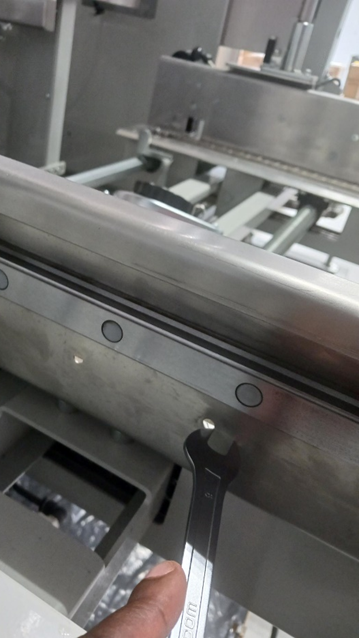

• Remove the four screws on the Push Arms to reveal the sliding mounting point.

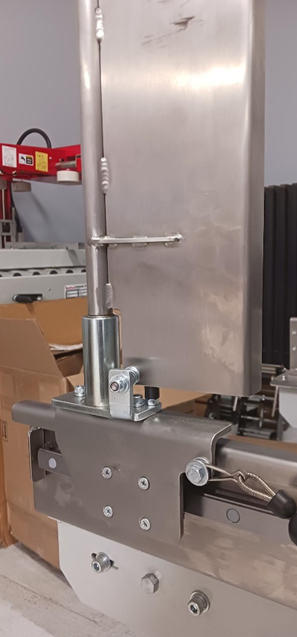

• Attach the CFH Push Arms to the sliding mounting point.
  • If the push arms do not touch the box at the top, place washers on the bottom two screws to correct the issue.

3. Part 3: Spring Assembly (Red)

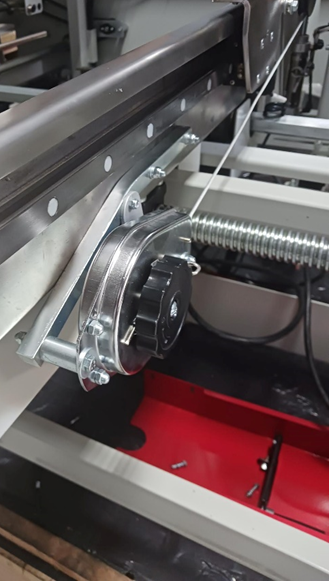

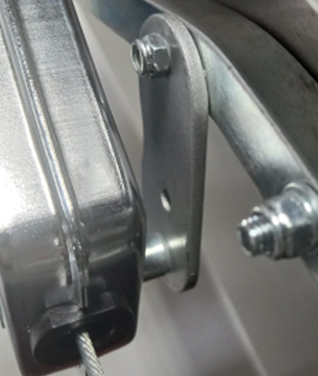

• Install the Spring Assembly by placing it in the empty holes as shown in the image.

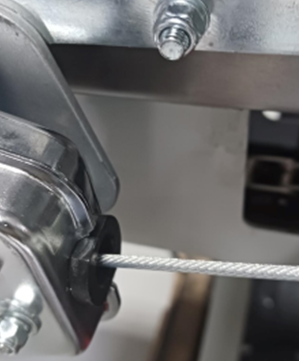

• Once secured, verify that the cable is not rubbing against the edge. Adjust the screw's position on the plate(11C0032N) if necessary.

Note: Ensure all components are securely fastened during installation.
