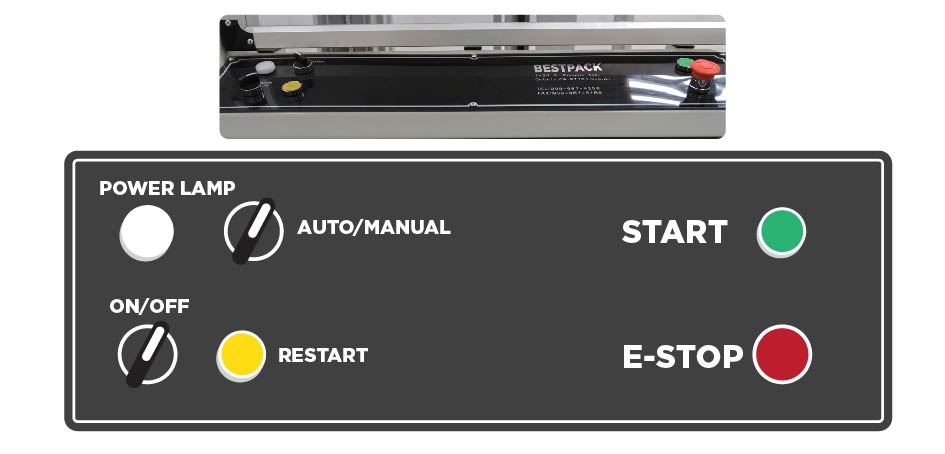

Control Panel Features:

Mastering these control panel features ensures smooth and efficient operation of the CSF/CSD machine, enhancing productivity and enabling a swift response to unexpected scenarios.

Operations:

1. How to Start the Machine:
   1. • Press the E-stop, release e-stop, preset reset button, and then press the start button.
2. How to Stop the Machine:
   1. • Press the E-Stop button or open one of the safety gates.
3. How to Clear a Box Jam:
   1. • Press the reset button and hold it for 3 seconds; wait for the Servo to go to the home position.

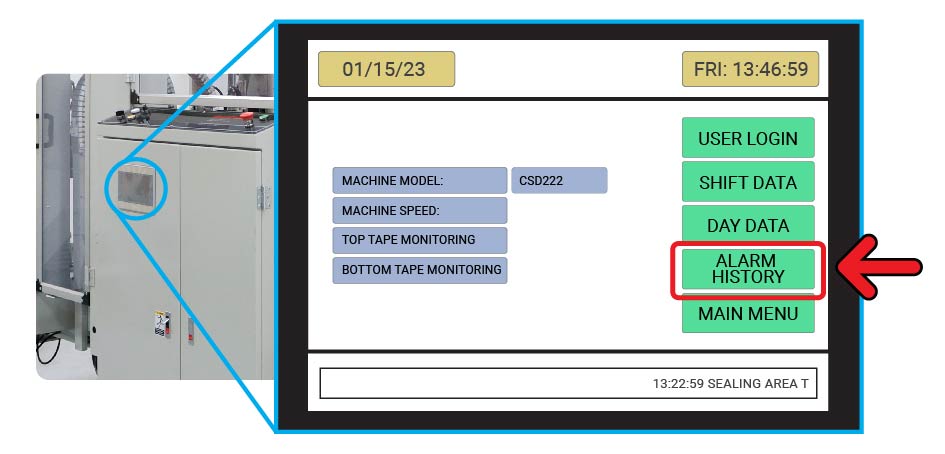

4. How to Access Alarm History on the HMI:
   1. • On the main HMI screen, find the option called “Alarm History” located on the left corner; press that option to access the record of issues presented in the machine.

This guide equips users with the essential knowledge to operate CSF/CSD machines effectively, ensuring seamless production and quick troubleshooting.
