Introduction:

This guide addresses common issues related to tape cutting mid-way of sealing. Follow the solutions provided below to resolve these issues and ensure optimal tape-cutting performance.

Detailed Steps:

1. Use High-Quality Tape:
   1. • Poor tape quality can lead to mid way break. Ensure you are using tape specifically designed for machine automation.

Note: Optimal tape quality is crucial for consistent and reliable sealing results.

1. Decrease Main Spring Tension:
   1. • If experiencing high spring tension, it may cause tape cutting issues.
      • Decrease the tension of the main spring on the tapehead.

Note: Gradually adjust the tension until it reaches the optimal setting for your tape and sealing requirements.

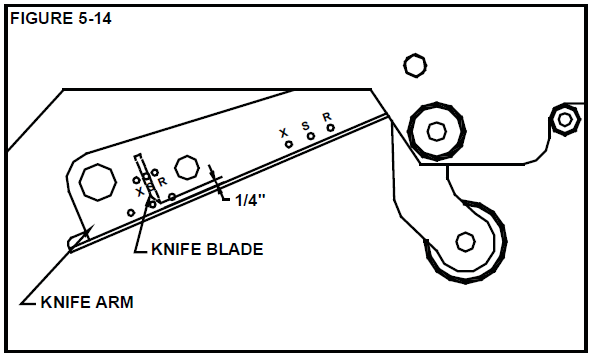

1. Adjust Blade Height:
   1. • Ensure the blade is positioned correctly.
      • Adjust it to be ¼” away from the bottom of the tab adjustment bracket.
      • Use the blue plastic tool from the provided toolbox.

Additional Tips:

• Regularly inspect and maintain the blade height and spring tension to prevent future tape cutting issues.
• Confirm the tab adjustment bracket is securely in place.

By following these troubleshooting steps, you can effectively address the problem of tape being cut midway during sealing.
