Issue Overview: The CSF/CSD machine may encounter an error labeled as "FA Home Sensor Failure" during startup. This error occurs when the inductive sensor (I:0/14) responsible for detecting the Folding Area's home position is misaligned.

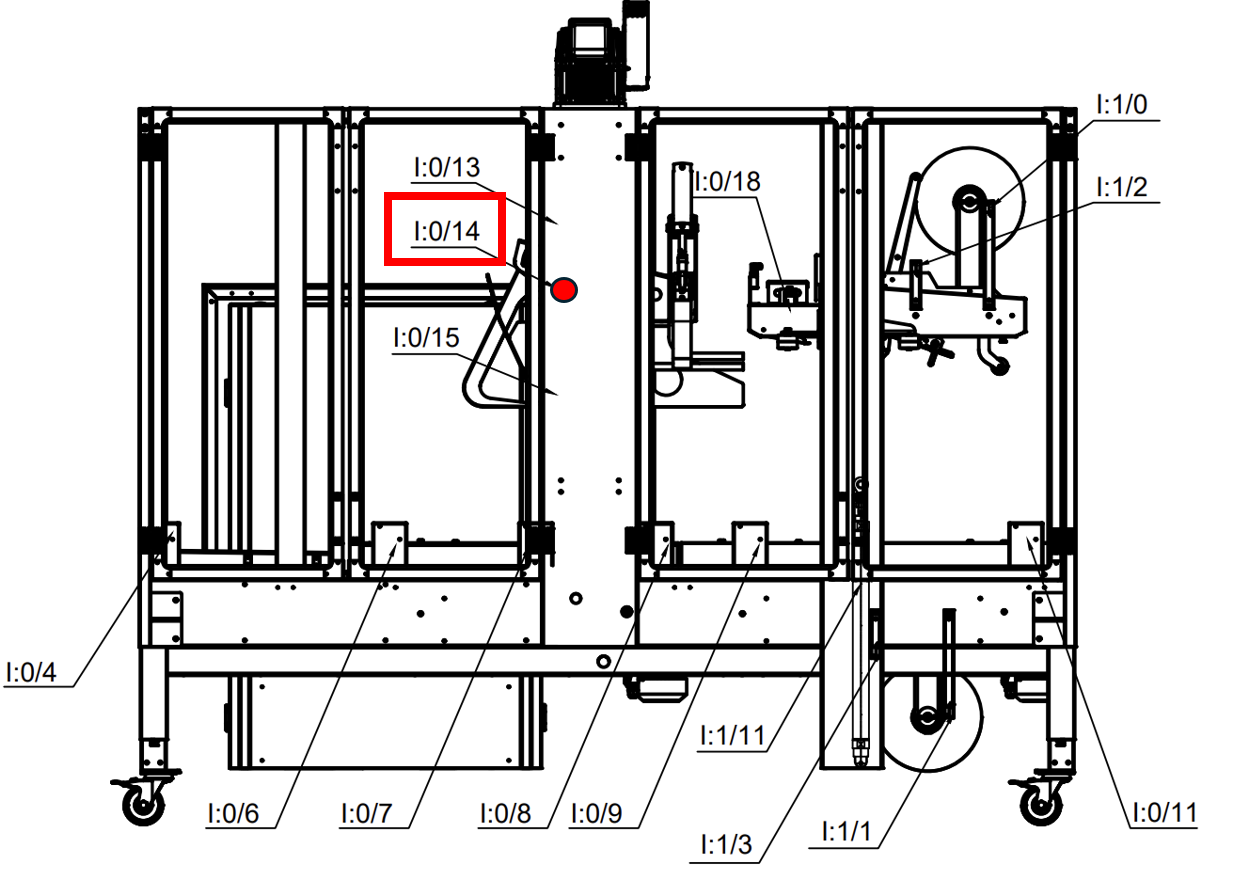

Sensor Location:

Steps to Troubleshoot:

1. Check Sensor Alignment: Begin by inspecting the alignment of the inductive sensor (I:0/14) that detects the Folding Area's home position. Ensure that the sensor is properly aligned and securely in place.
2. Verify Sensor Functionality: Test the functionality of the inductive sensor by manually triggering it while observing its response in the machine's control system. Ensure that the sensor's output corresponds accurately to its activation.
3. Inspect Wiring Connections: Examine the wiring connections of the inductive sensor to ensure there are no loose or damaged wires. Secure any loose connections and repair or replace any damaged wiring as needed.
4. Clean Sensor Area: Clean the area around the inductive sensor to remove any debris or obstructions that may be interfering with its operation. Ensure that the sensor has a clear line of sight to its target.
5. Reset Error: Once the above steps are completed, reset the error message related to the FA Home Sensor Failure in the machine's control system. Follow the machine's operating manual or guidelines for proper error resetting procedures.
6. Test Machine Functionality: After addressing the sensor alignment issue and resetting the error, test the machine's functionality by running a test cycle to verify that the FA Home Sensor Failure error has been resolved.
