Introduction

This troubleshooting guide addresses issues related to the movement of the suction cup post. If you are experiencing problems such as misalignment, lack of lubrication, or a non-functioning cylinder, follow the steps below to identify the cause and implement corrective actions.

Common Issues and Corrective Actions

Detailed Steps:

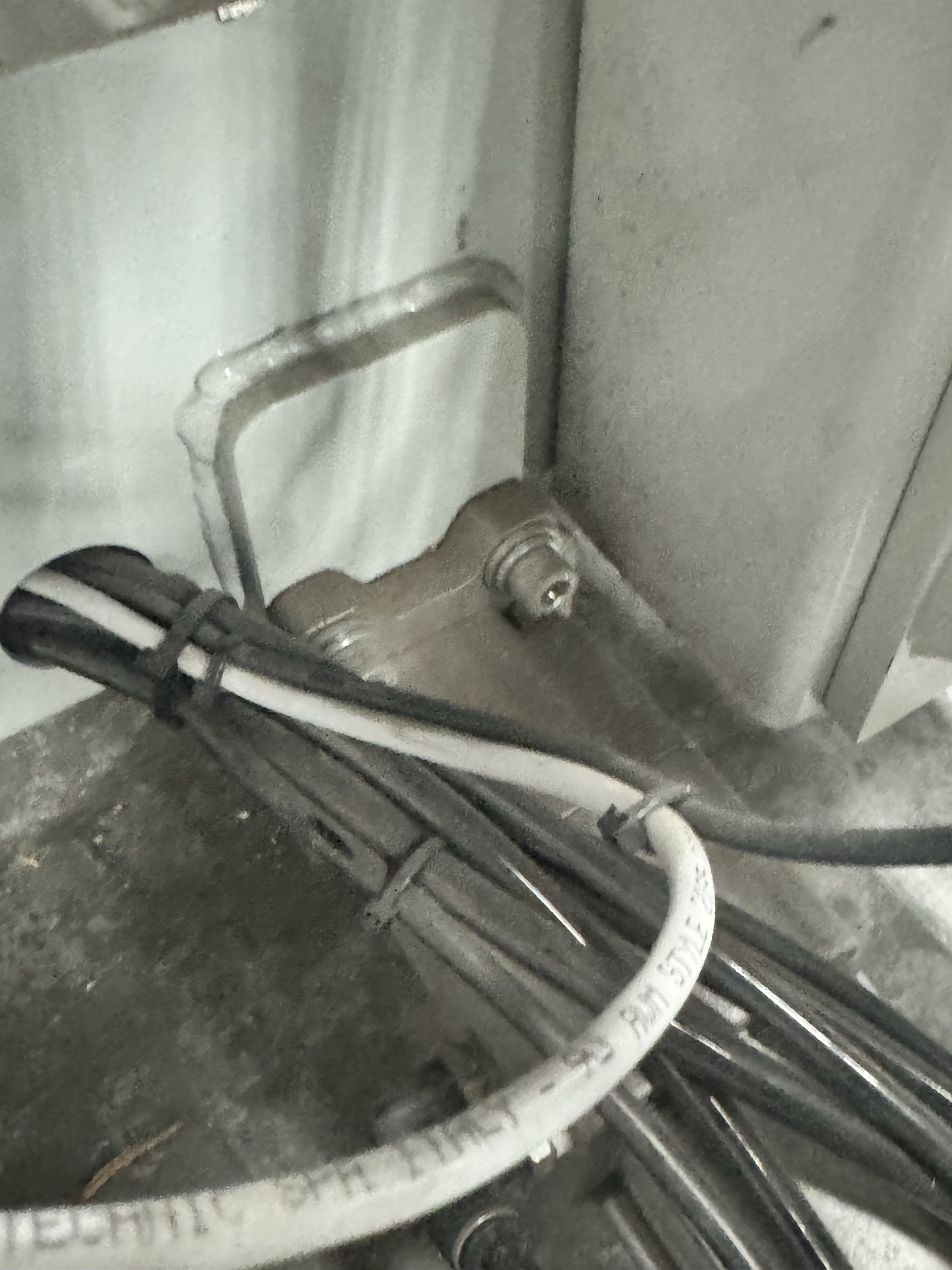

1. Misalignment of the Suction Cup Post:
   1. • If the suction cup post is misaligned, loosen the 4 bolts connecting the cylinder to the machine under the cartons hooper.
      • Run the jog feature and tighten the screws during suction cup movement to realign the cylinder.

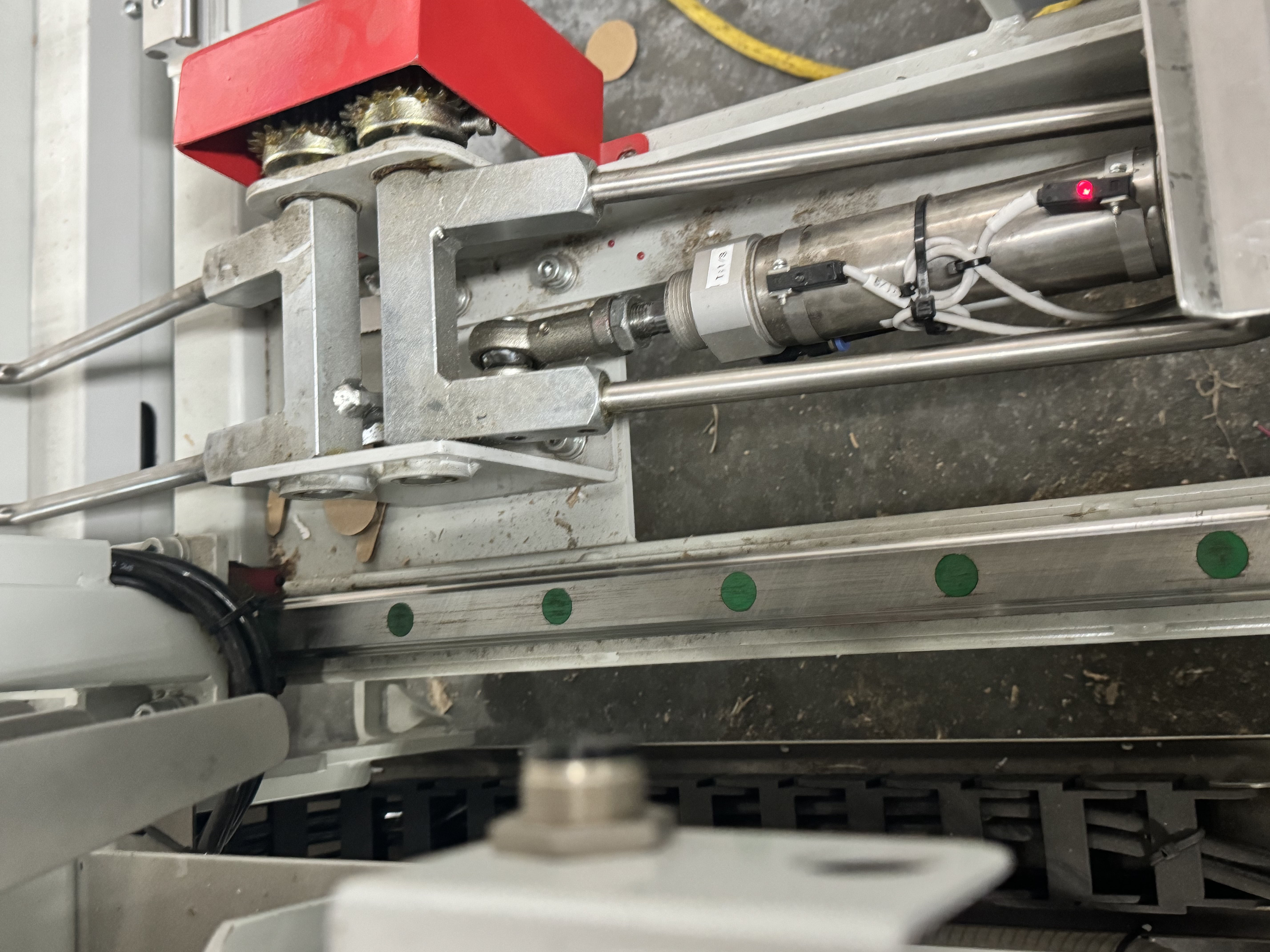

2. Lack of Lubrication for Linear Bearing Rail:

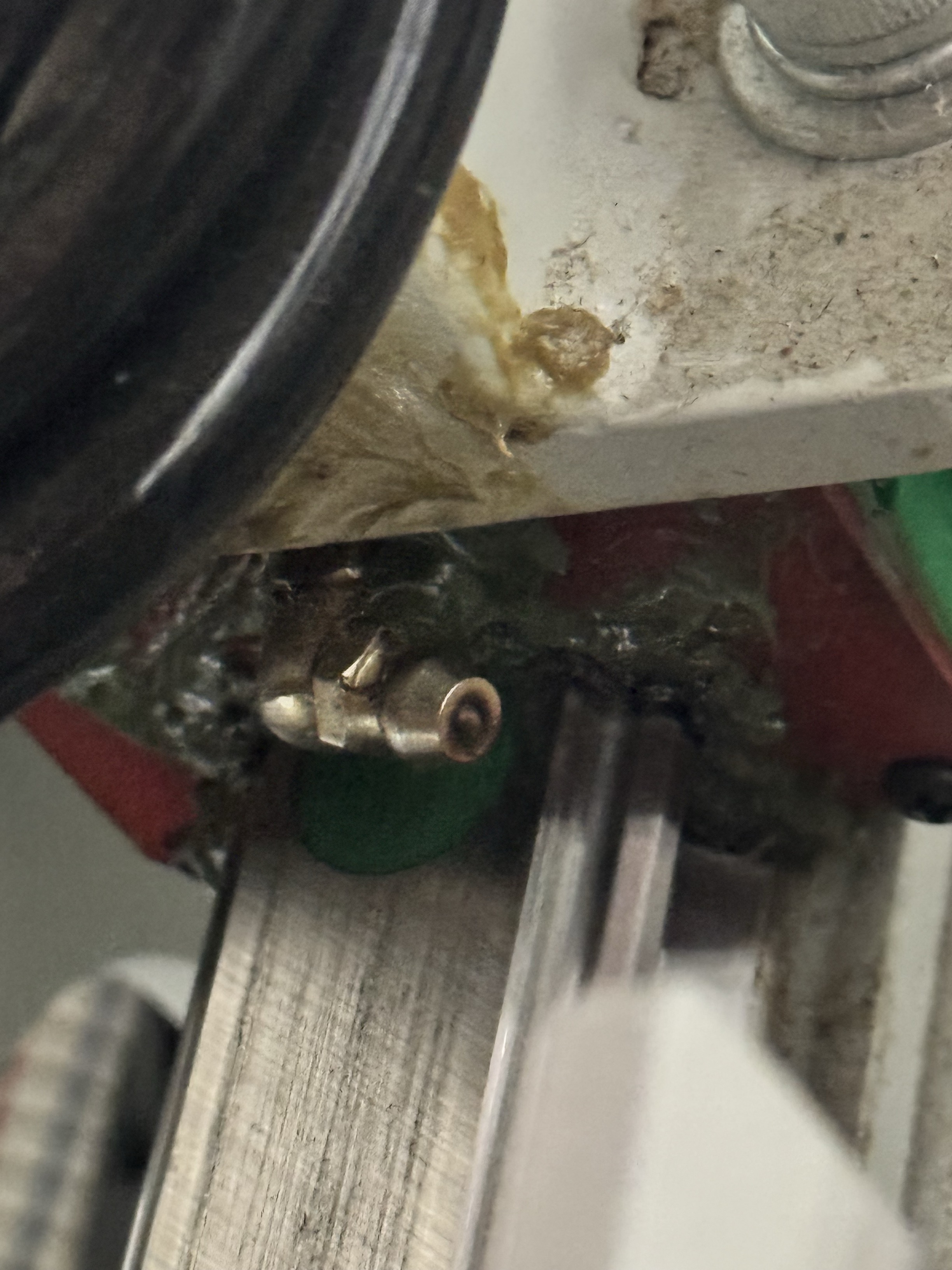

   1. • Lubricate the linear bearing rail supporting the suction cup post.
      • Place the machine in manual mode, move the suction cups backward using the knob, and manually push the arm post toward the door.
3. Non-functioning Cylinder:

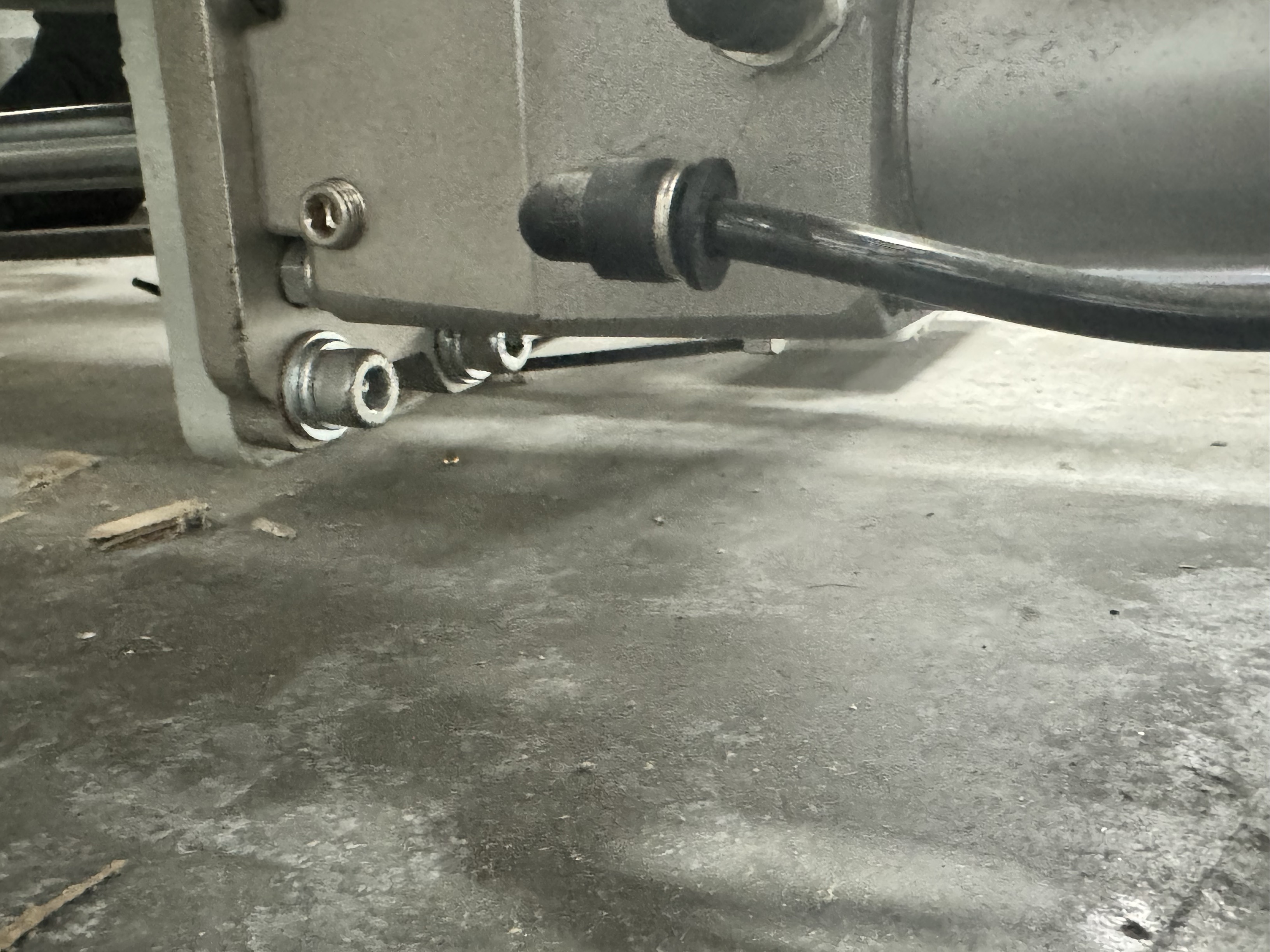

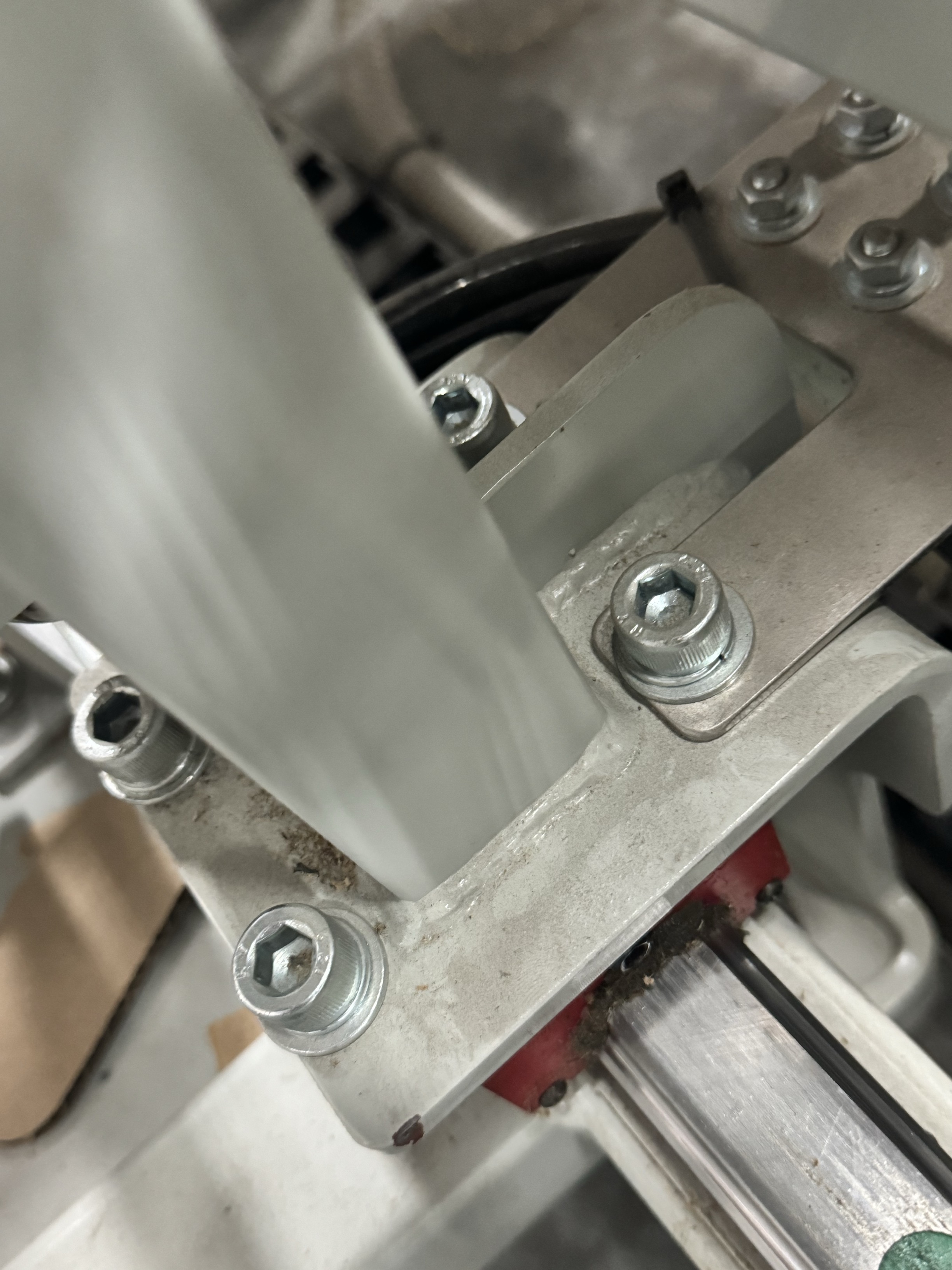

   1. • Loosen the 4 bolts at the bottom of the suction cup post and disconnect it from the extended post of the cylinder.
      • Manually move the suction cup post, lubricate the rail, and test the jog feature.
      • If the cylinder doesn't retract or extend, replace the cylinder.

Additional Tips:

• Regularly inspect and maintain the suction cup post components to prevent issues.
• Lubricate the linear bearing rail periodically to ensure smooth movement.
