Introduction

This troubleshooting guide addresses the issue of a jam fault occurring immediately when a carton enters the sealer in the A-Series. If you encounter this problem, follow the steps below to identify and resolve the issue effectively.

Possible Cause and Corrective Action

Detailed Steps to Corrective Action:

1. Activate the DAS’s Access Point and Local Web Server:

•  a. Press "Enter" on the Home Screen page of the HMI to bring up the Main Menu.
• b. Select "Settings."
• c. Enter on "WiFi."
• d. Enter on "Access Point."
• e. Press "Enter" to activate.

1. Connect to the Access Point:

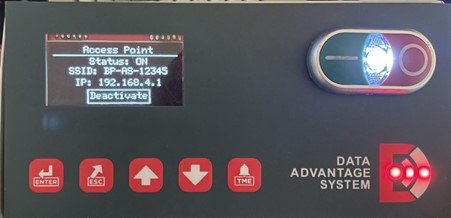

   • • Once the access point has been activated, the screen will display the DAS’s access point SSID.
     • Connect to the access point via your computer or mobile device from your WiFi settings.
       • • If the access point requires a password, use: Bestpack@1425.
2. Navigate to the Local Dashboard:
   • • Once connected, open your web browser and enter the DAS’s IP address as the URL.
       • • In the example above, the DAS’s IP address is 192.168.4.1.

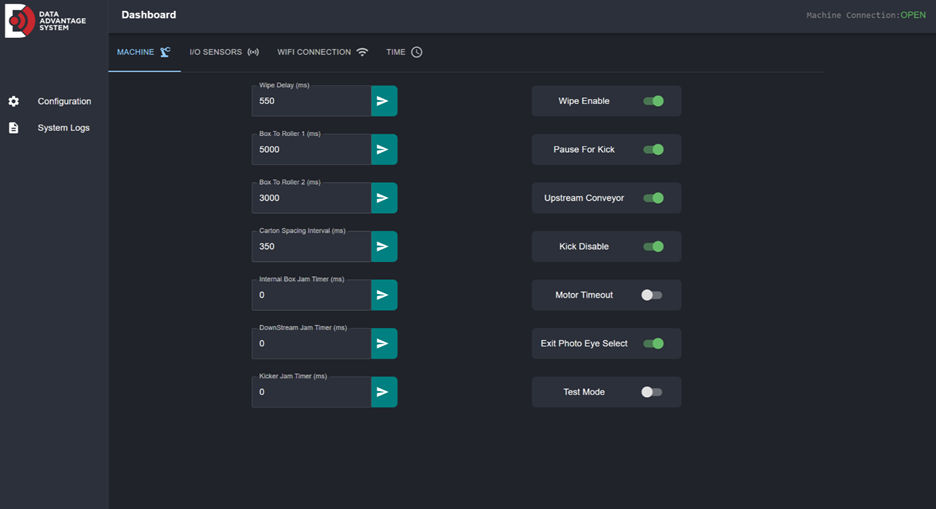

3. Verify Values on the Dashboard:

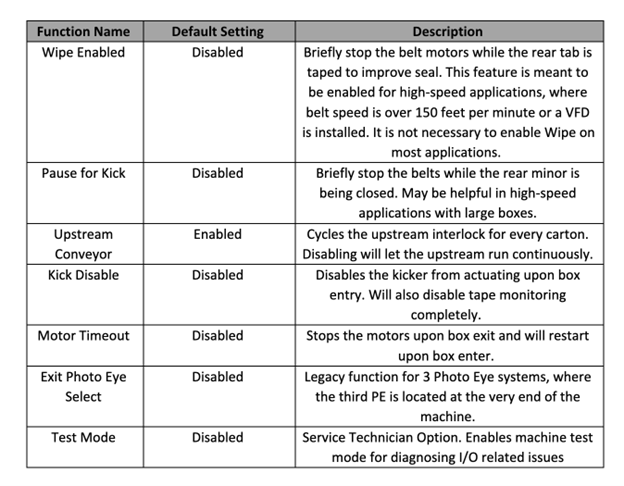

   • • Once on the Dashboard page, refer to the provided chart to ensure all values are correct on your DAS.
     •
     •
     •

Additional Tips:

• Regularly check and update DAS values to prevent recurrence of jam fault issues.
• If issues persist, contact our support team for further assistance.

Reference Article:

• AS w/ DAS: TROUBLESHOOTING JAM FAULT

By following these troubleshooting steps, you can effectively address and resolve the issue of a jam fault occurring right away when a carton enters the sealer in the A-Series.
