This FAQ will quickly guide you through easy steps to activate and configure EasyAccess 2.0.

Related Articles

• How to register and configure EasyAccess 2.0 on Weintek HMI?

In this Article

• Step 1: Connect the Internet-Enabled Ethernet Cable
• Step 2: Change/Set the IP Address of LAN 1
• Step 3: Get HMI Hardware Key
• Step 4: Setup and Activate the HMI on Bestpack Easy Access Server (With Assistance from BestPack Engineer)

Step 1: Connect the Internet-Enabled Ethernet Cable

Begin by connecting an internet-enabled Ethernet cable to LAN port 1 of your HMI. This step sets the foundation for your EasyAccess 2.0 configuration journey.

Step 2: Change/Set the IP Address of LAN 1

1. Press the "setting" icon for your HMI model. You can find this icon by tapping the Left arrow located at the bottom left corner of the screen.

2. A password prompt will appear. Input the password (provided by your Bestpack Engineer).

3. Now, click on the "Network" icon.

4. Navigate to LAN 1 and select it.

5. Opt for "Obtain an IP address Automatically."

6. Complete the process by clicking "Apply" and then "OK."

Step 3: Get HMI Hardware Key

1. Access the "setting" icon for your HMI model using the Left arrow at the bottom left corner.

2. Enter the password provided by your Bestpack Engineer when prompted.

3. Locate and select "Easy Access 2.0."

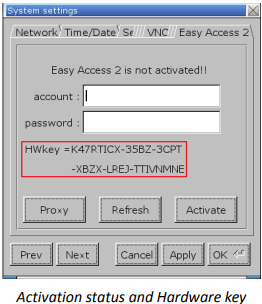

4. Make a note of the HWKEY (Hardware Key) displayed on the screen. You'll need this for HMI activation.

5. Provide the HWKEY to your Bestpack Engineer for HMI activation.

6.

Step 4: Setup and Activate the HMI on Bestpack Easy Access Server (With Assistance from BestPack Engineer)

This final step involves working closely with your BestPack Engineer to set up and activate your HMI on the Bestpack Easy Access server. Follow their guidance to ensure a smooth and successful configuration process.
