Requirements

1. Ewon Cosy 131 VPN Module
2. Laptop
3. Internet connection (Wired/Wi-Fi)
4. Ethernet cable to connect the laptop to the VPN module.
5. eBuddy software (Download)
6. eCatcher software (Download)

Updating/Setting up the IP Address

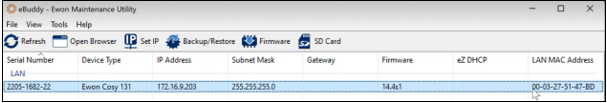

Once the IP settings are set to DHCP (Windows - Change TCP/IP settings) , open the eBuddy software and press Refresh and click on the device once it appears on the list.

Right-click on the device and select Create Set IP Address/Press F2.

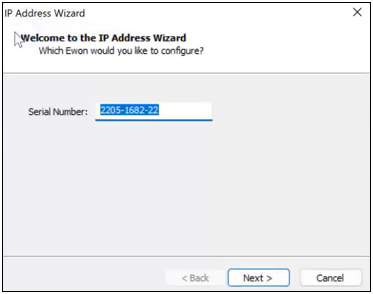

Input the device Serial Number and hit Next.

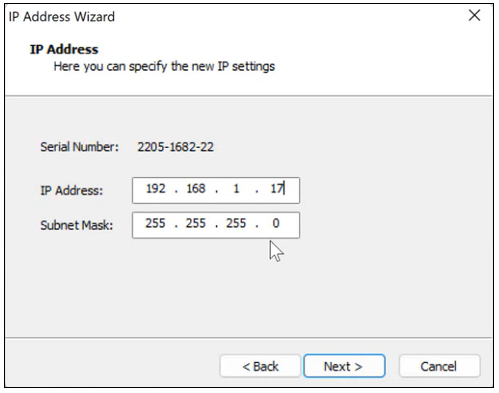

Input the correct IP Address and Subnet Mask and hit Next.

Note: The IP Address shown here is for representation purposes only. Different families of machines support different IP Addresses.

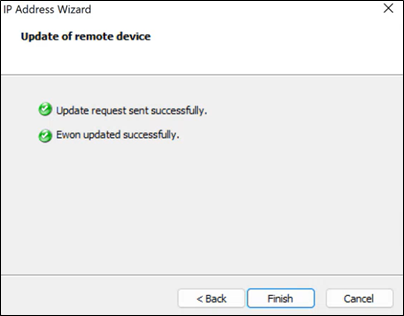

Hit Finish once the device has been rebooted.
