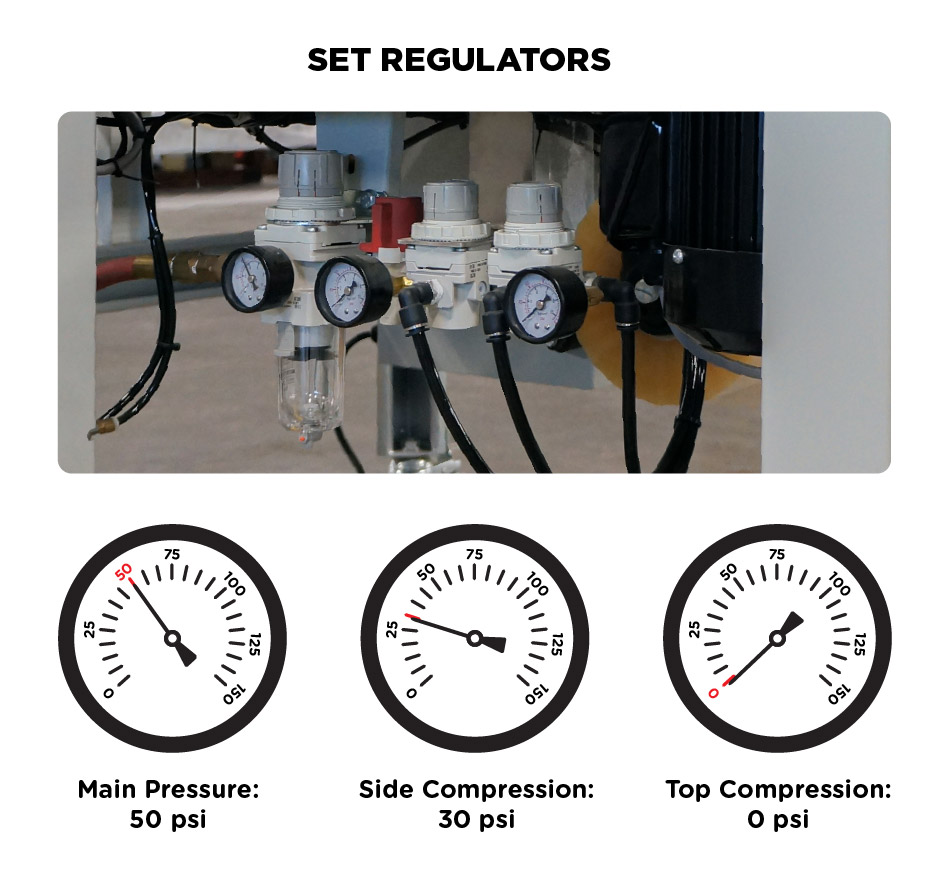

1. Set main pressure regulator to 50 psi
2. Set side compression regulator to 30 psi
3. Set top compression regulator to 0 psi




4. Turn on the machine

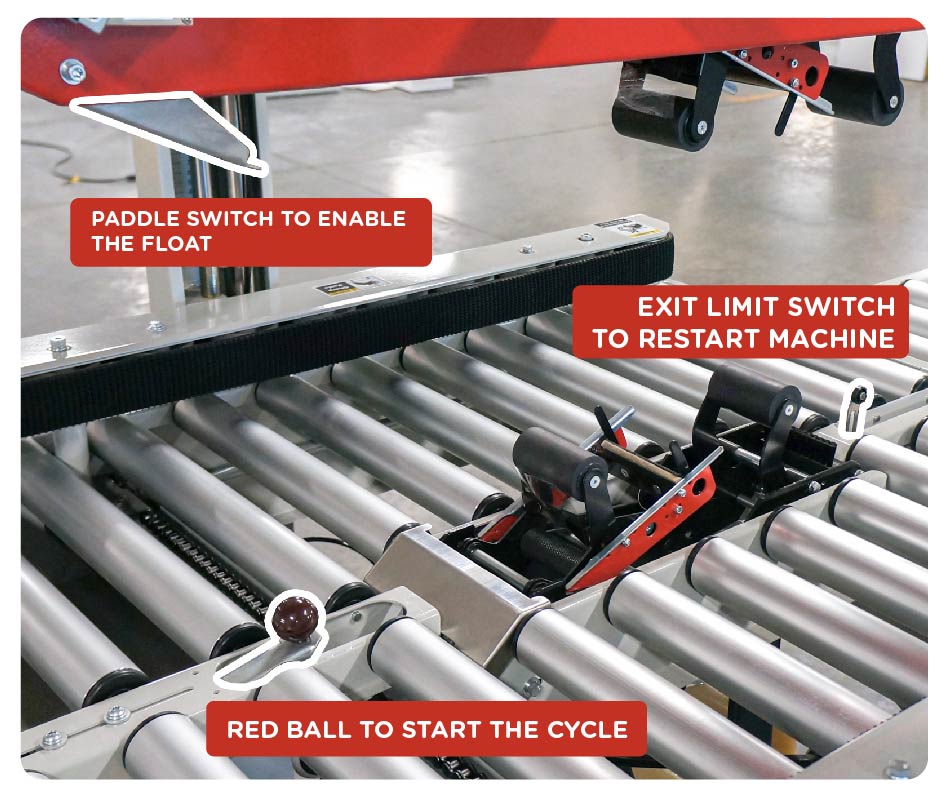

5. Press and release the red ball to start the cycle
6. Press the paddle switch to enable the float
7. The Top mast should then return to the top position

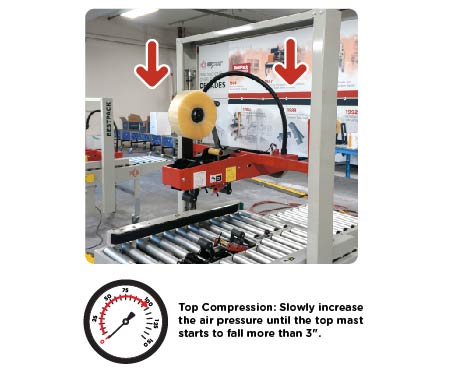

8. Slowly increase the float pressure until the top mast starts to fall more than 3"




9. Press and release the exit limit switch
10. Run a carton through the machine to test the float

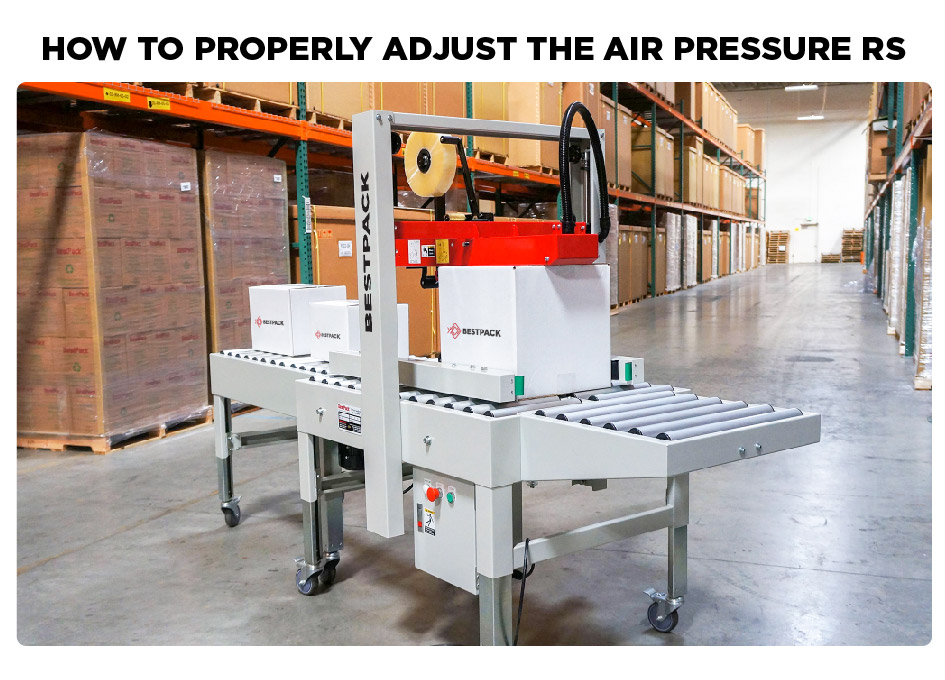

This video will demonstrate how to adjust the float control on your RS!
