Introduction

This troubleshooting guide addresses issues related to the air pressure settings for various regulators in the CSF Pressure Cabinet. Proper air pressure is crucial for the optimal functioning of different sections within the machine. Follow the guidelines below to troubleshoot and adjust air pressure settings as needed.

Regulator Settings

Detailed Descriptions:

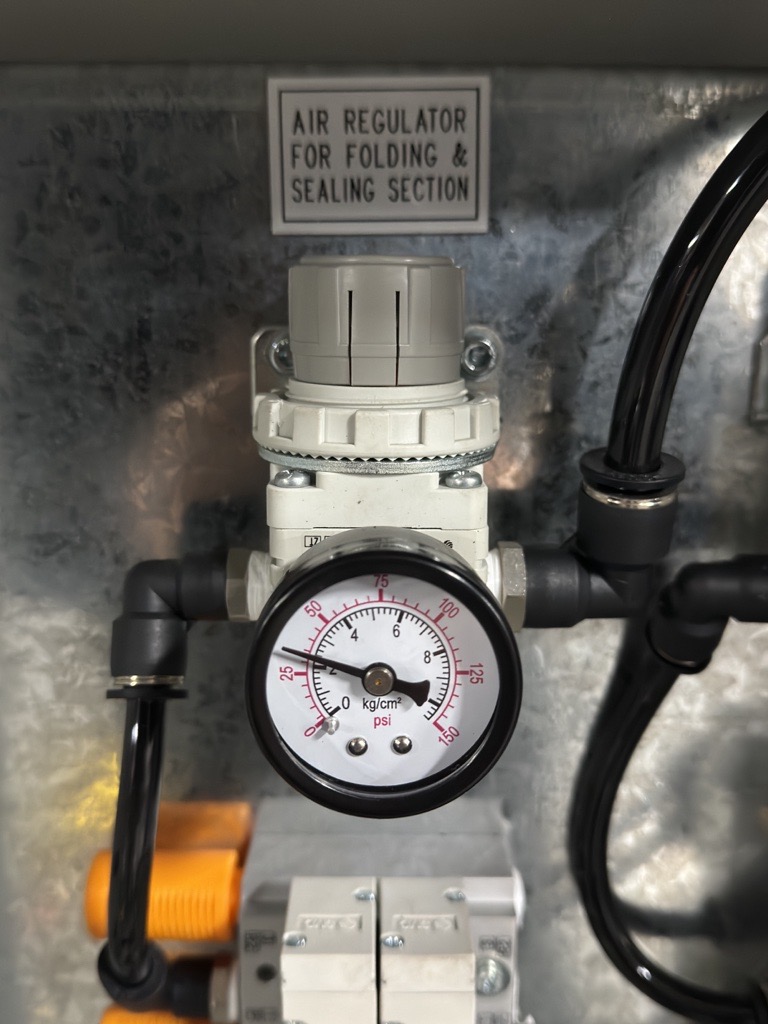

• Folding & Sealing Section:
  • • This regulator influences the speed of side drives to close in the carton during movement through the indexer, folding, and sealing areas.
    •

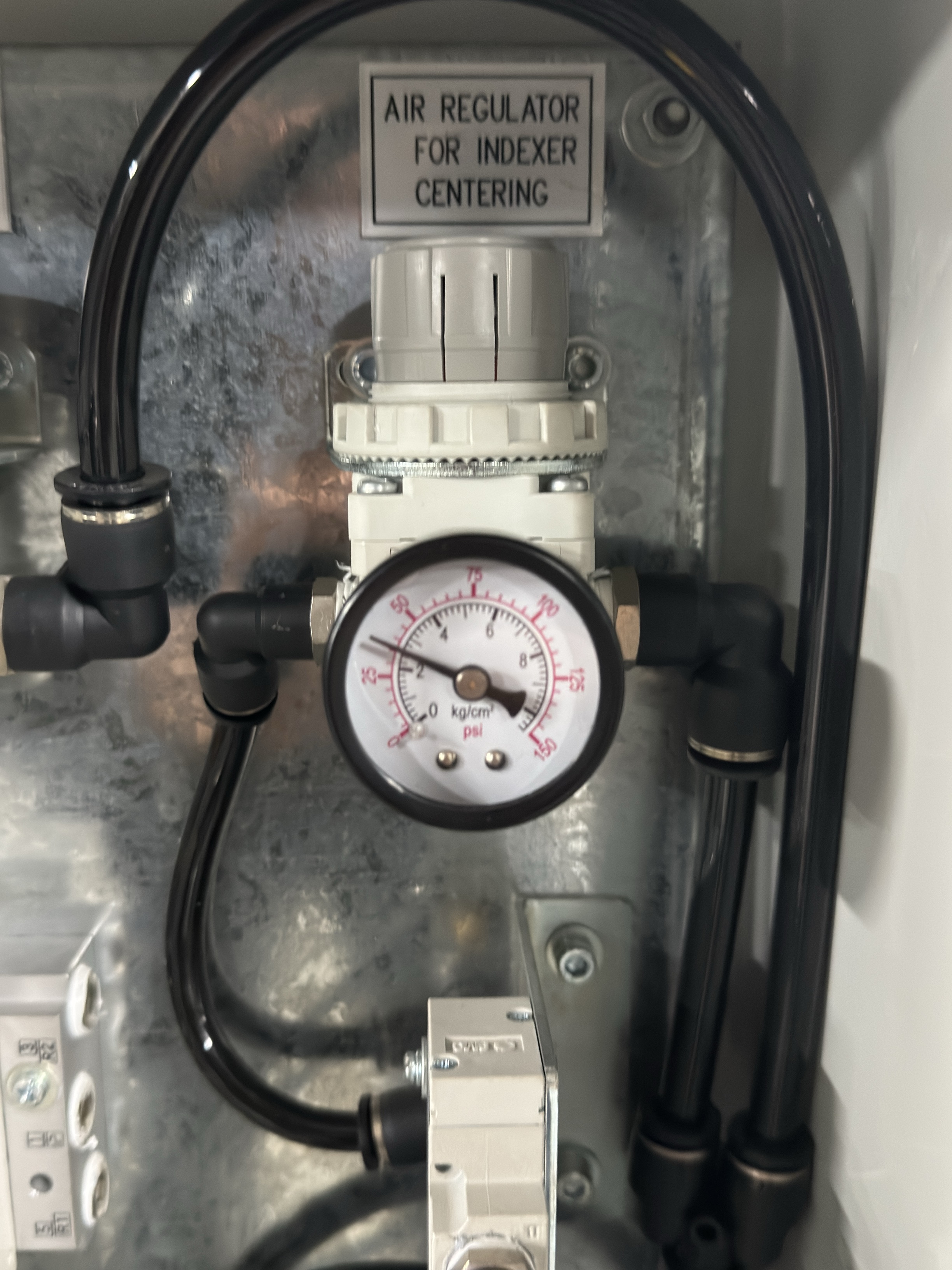

• Indexer Centering:
  • • Controls the speed of centering the carton before it enters the folding area.
    •

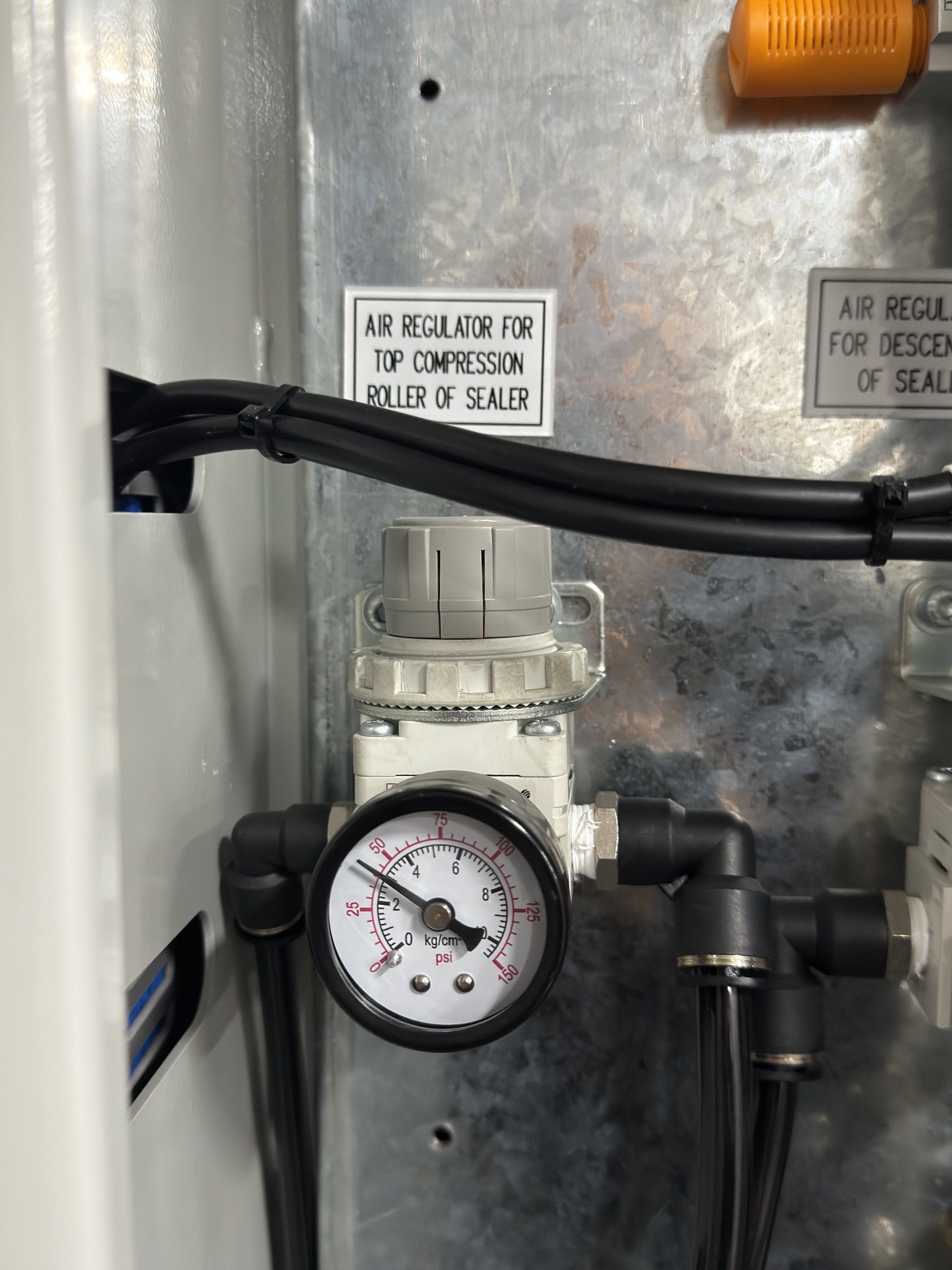

• Top Compression Roller of Sealer:
  • • Manages the speed of compression rollers closing in and out to ensure complete carton sealing.
    •

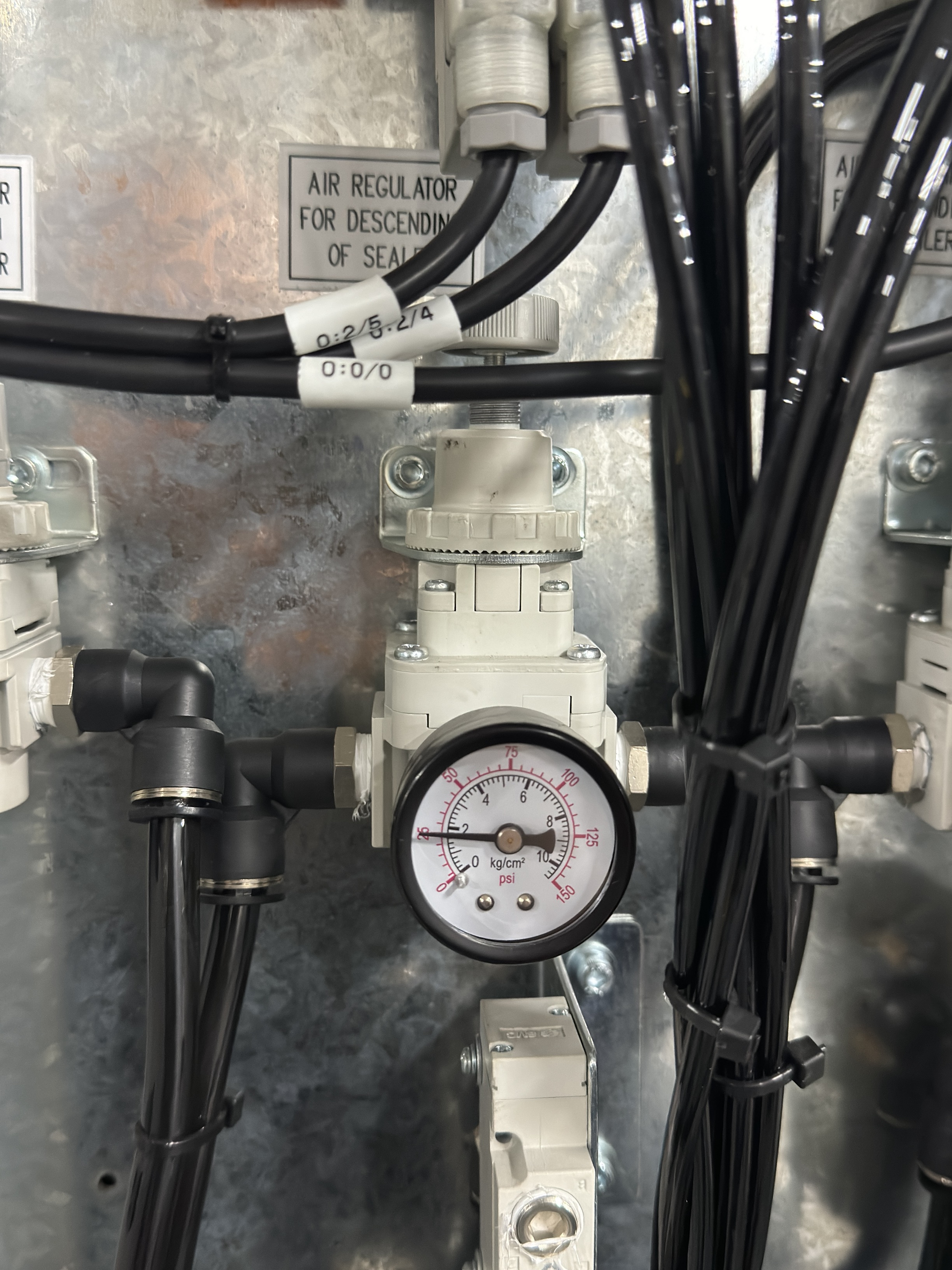

• Descending of Sealer:
  • • Governs the speed at which the sealing section top drive descends on the carton as it exits the folding area.
    •

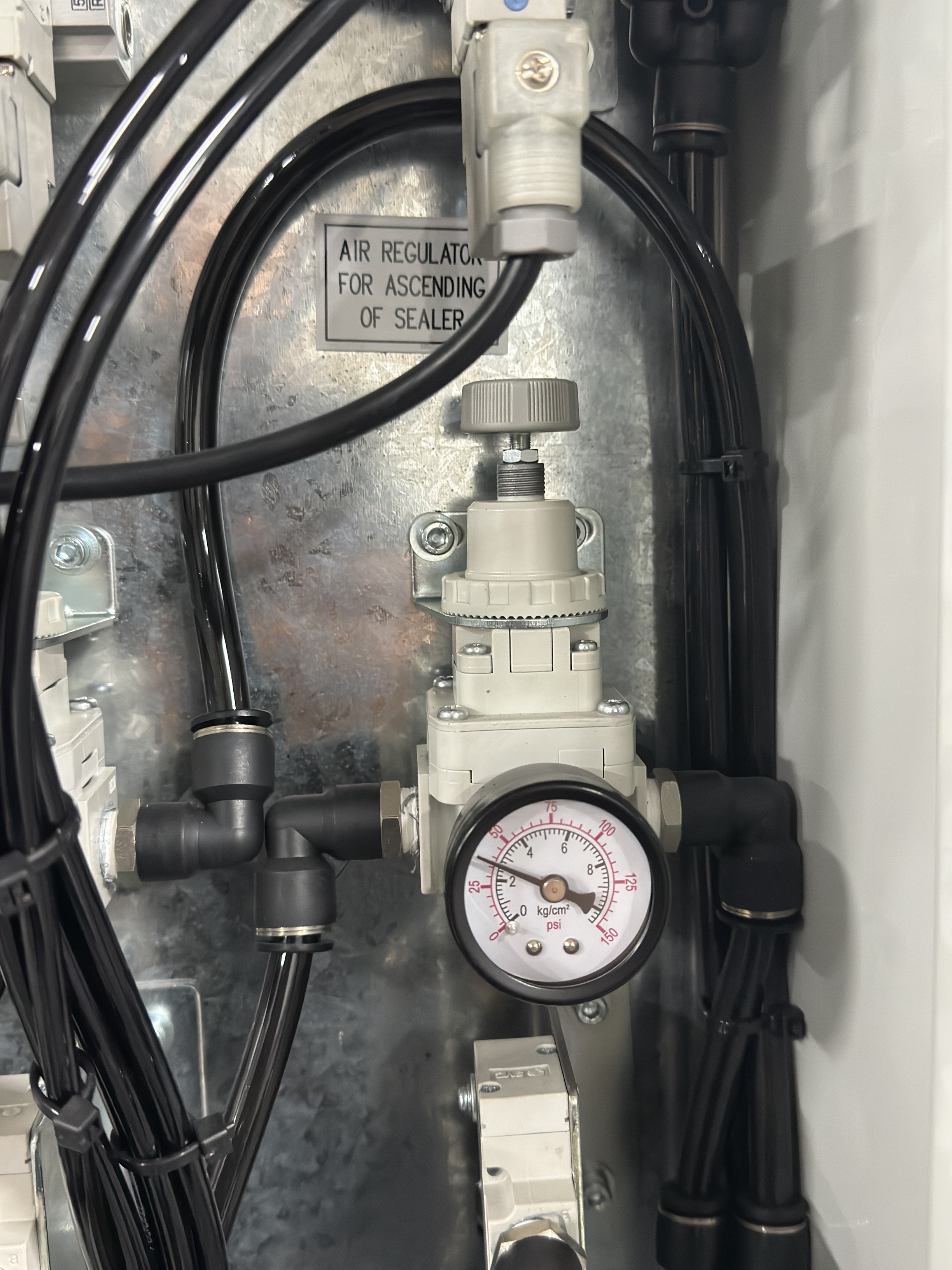

• Ascending of Sealer:
  • • Regulates the speed of the sealing section top drive ascending after the carton exits the sealing area.
    •

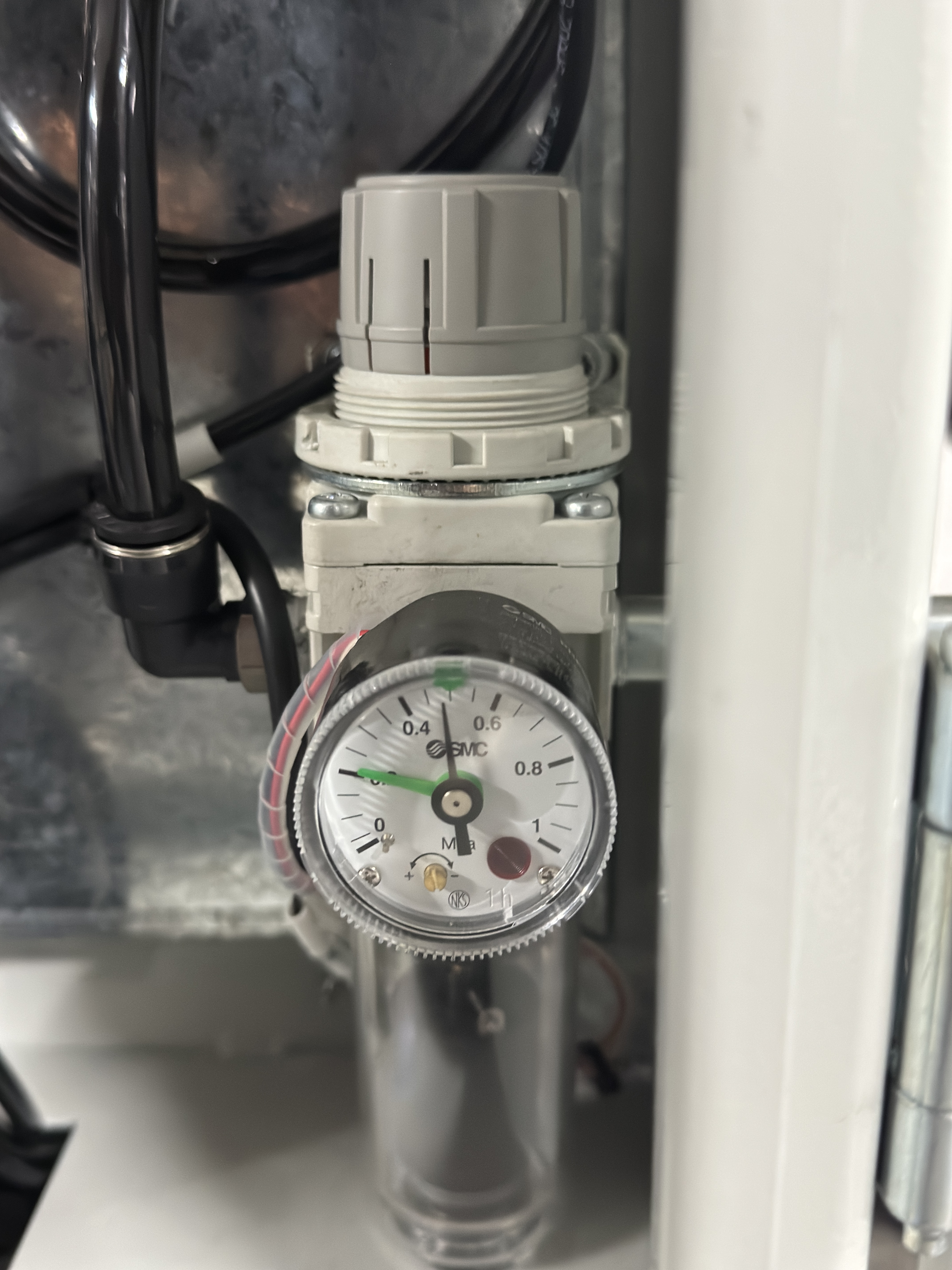

• Main Regulator:
  • • Controls the overall air intake into the machine from the air tank, distributing air throughout the machine. Set at 0.5 with the green needle at 0.2.
    •

Additional Tips:

• Regularly check and adjust the air pressure settings for each regulator to ensure optimal machine performance.
• When adjusting the Main Regulator, exercise caution and refer to the specified settings to prevent issues with air distribution.

By following these guidelines, you can troubleshoot and adjust air pressure settings for different sections, optimizing the performance of the CSF Pressure Flow.
