INTRODUCTION:

This article provides a comprehensive troubleshooting guide to address top compression roller issues on CSF, CSD, CSS, and CS machines. If you've encountered challenges with the top compression rollers during the sealing process, this guide will assist you in identifying possible causes and implementing corrective actions to ensure seamless operation.

OBSERVATIONS:

1. The following observations indicate potential top compression roller problems:
2. Top compression rollers not activating during box sealing.
3. Delayed engagement of top compression rollers during box sealing.
4. Slow speed of the top compression Roller.
5. Misalignment of the Top Compression Rollers.
6. Damage to the Mechanism.

POSSIBLE CAUSES:

1. Low Air Pressure: Inadequate air pressure may lead to improper activation of the top compression rollers.

2. Damage or obstructed Air Hose: A damage or obstructed air hose can restrict airflow to the top compression rollers.

3. Closed Flow Control Valve: A closed flow control valve can impact the speed and engagement of the top compression rollers.

4. Lack of Lubrication: Inadequate lubrication on the tracks can hinder the movement of the Top Compression Rollers.

5. Misalignment of the square bearings: A misalignment in the mechanism that holds the Top Compression Rollers can cause abnormal behavior when the system is activated.
6. Damage to the mechanisms: If any component within the assembly of the Top Compression Rollers is in poor condition, it can cause issues when the system is activated.

Corrective Actions:

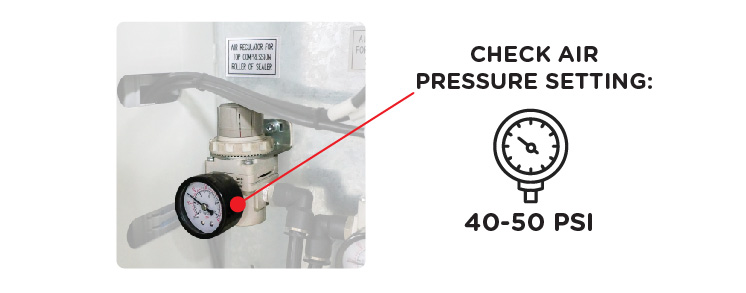

1. Check Air Pressure Setting: Ensure that the air pressure setting is within the recommended range. The pressure gauge labeled "Air Pressure for Top Compression Roller" should be set between 40-50 psi.


2. Air Hoses: Inspect if any of the air hoses feeding air to the flow control valves are obstructed and the cylinder is not receiving air. Ensure that nothing is bending or putting pressure on the hose. If the hose is damage and you hear air leaking, identify the pinch point and patch or replace the air hose.

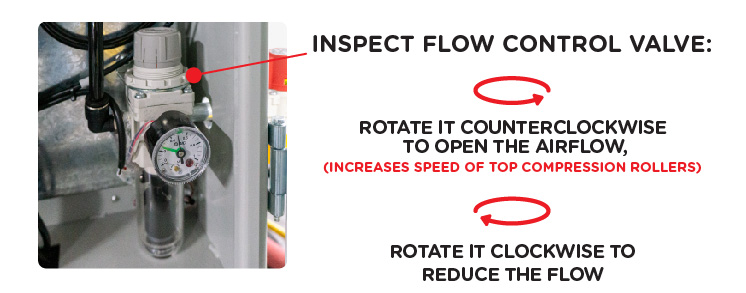

3. Inspect Flow Control Valve: Verify the position of the flow control valve. Rotate it counterclockwise (CCW) to open the airflow, which will increase the speed of the top compression rollers. Rotate it clockwise (CW) to reduce the flow.

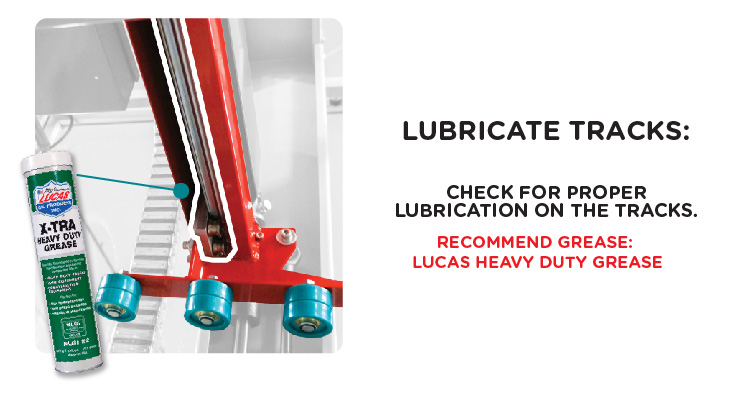

4. Lubricate Tracks: Check for proper lubrication on the tracks. If lubrication is insufficient or absent, follow the guide "How to lubricate the Top Compression Rollers on a C-Series machine".

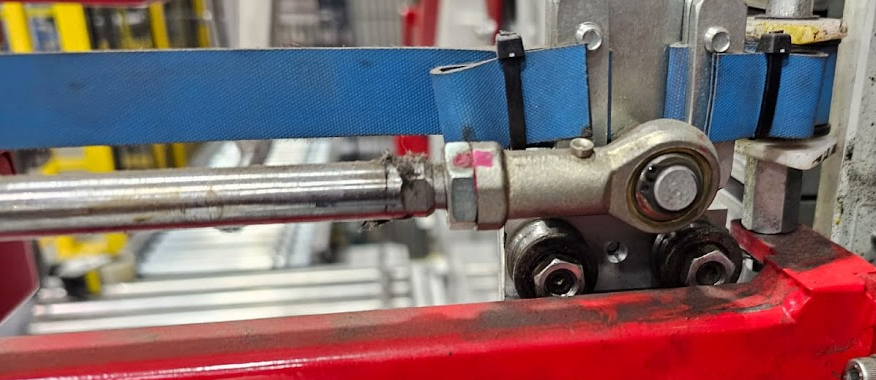

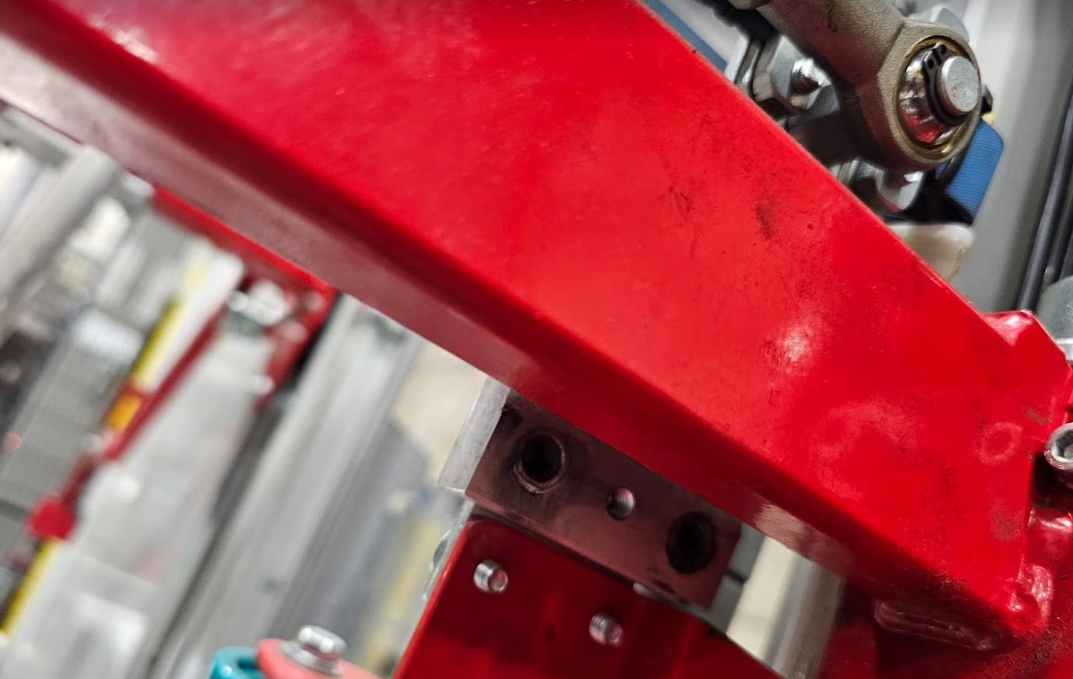

5. Verify the Mechanisms of the Square Bearings: The square bearing that holds the Compression Rollers must be aligned correctly and properly attached to the side bar. If the Top Compression Rollers twist or shake when activated, it indicates an issue with the attachment of the Compression Rollers to the square bearing. Verify all components of the square bearing assembly and check for any parts that may be interfering with other components and If that's the case, align these components or replace any parts that are in poor condition.

6. Check for Damage Components: Please check if the rest of the components that integrate the assembly of the Top Compression Rollers System (belts, side bar, cylinders, etc.) are in proper condition. If any of these components are bent, have broken points, or are missing parts and cannot be repaired, replace the part. If the parts are not in your stock, refer to the machine's manual to identify the Part Number. If you do not have the manual and require assistance, please contact our Tech Support Line at +1 888 507-9728. We strongly recommend performing periodic preventive maintenance to avoid these situations. Verify the mechanisms and conduct a preventive maintenance check at least once every three months. If you have any questions about the remaining steps for preventive maintenance, please consult the following article "Maintenance Schedule For M, R, A and C-Series".

CONCLUSION

By following these corrective actions, you can effectively address top compression roller issues on CSF, CSD, CSS, and CS machines. For further assistance or in-depth troubleshooting, please reach out to our support team.

Remember, resolving top compression roller problems promptly contributes to consistent and efficient sealing operations, enhancing the overall productivity of your machinery.
