How to Connect the DAS Tray to WiFi

2. Once the access point has been activated, the screen will display the DAS’s access point SSID.

3. Connect to the access point via your computer or mobile device using the following as the password: Bestpack@1425

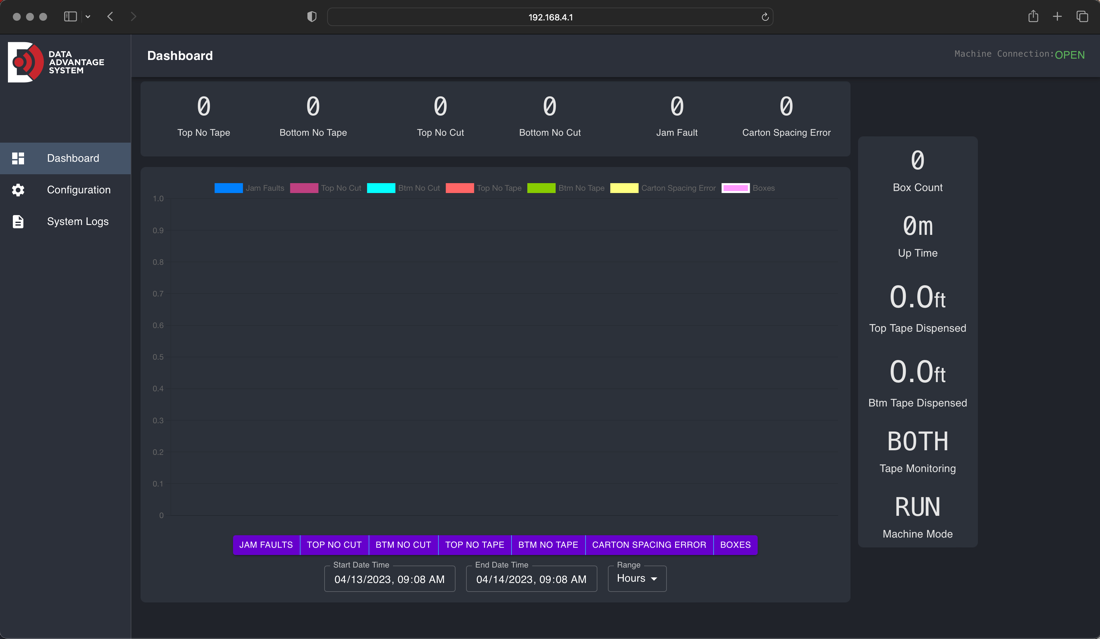

4. Once connected, navigate to the Local Dashboard using your web browser and the DAS’s IP address, 192.168.4.1, as the URL

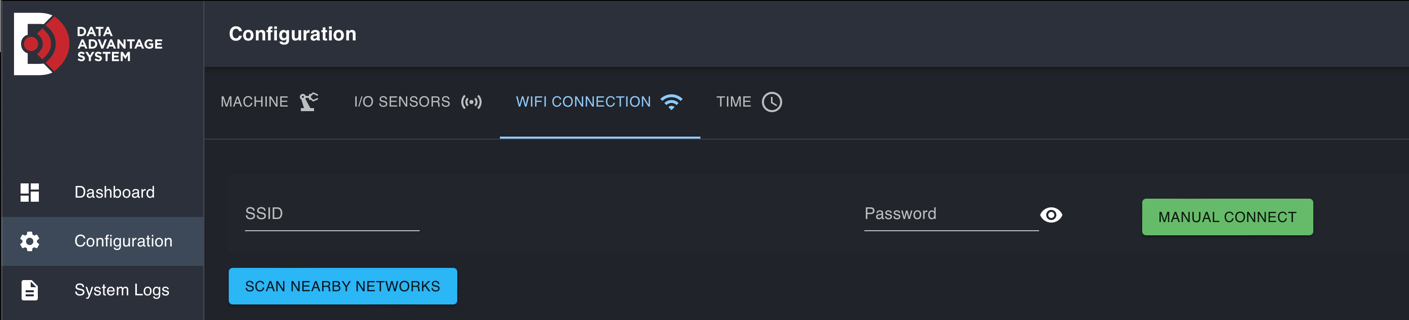

5. Navigate to the WiFi Connection tab under the Configuration menu option

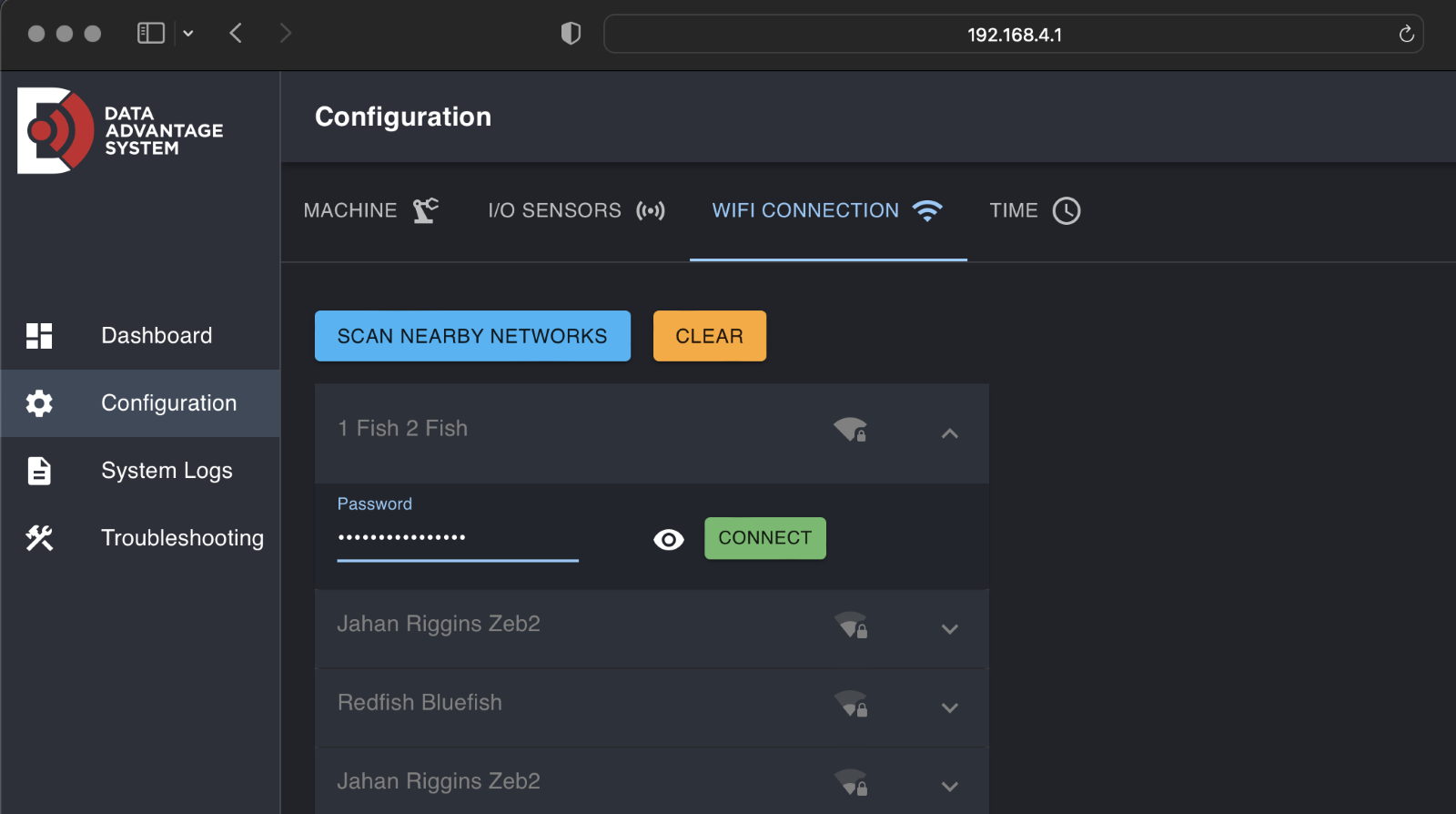

6. Enter your network credentials in the Manual Connection section or use Scan Nearby Networks to view all available networks. If your network does not appear on the list of available networks, please make sure that the network is broadcasting over 2.4 GHz.

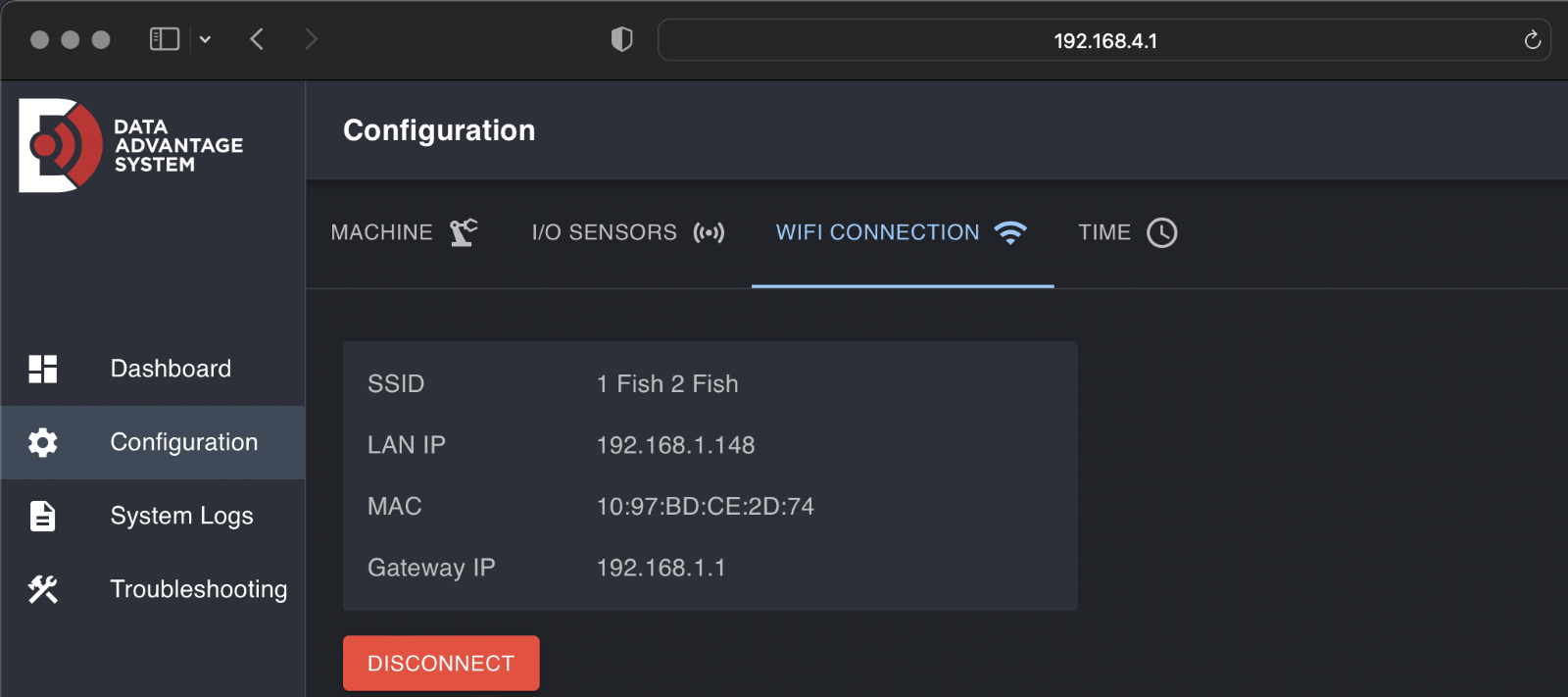

7. Once connected, the information about the network will be displayed, and the WiFi status LEDs on the tray should be lit.

What Type of Information is Transmitted by the Machine?

If connected to WiFi, the DAS will periodically transmit small amount of data to the cloud using an encrypted communication protocol. The transmitted data only includes data that has been generated from using the machine. This data includes:

• Machine Activity
• Usage Statistics
• Faults
• Box Information
• Tape Usage
• Logs

What communication protocols are used, and what ports need to be available?

The DAS utilizes MQTT over TLS, requiring port 1883, and HTTPS, requiring port 443.
