Overview

This guide provides step-by-step instructions on converting the RSM Turntable from 220V to 110V. This process involves modifying the Voltage Frequency Drive (VFD) by adding a jumper to change the voltage settings.

Steps to Convert RSM Turntable to 110V

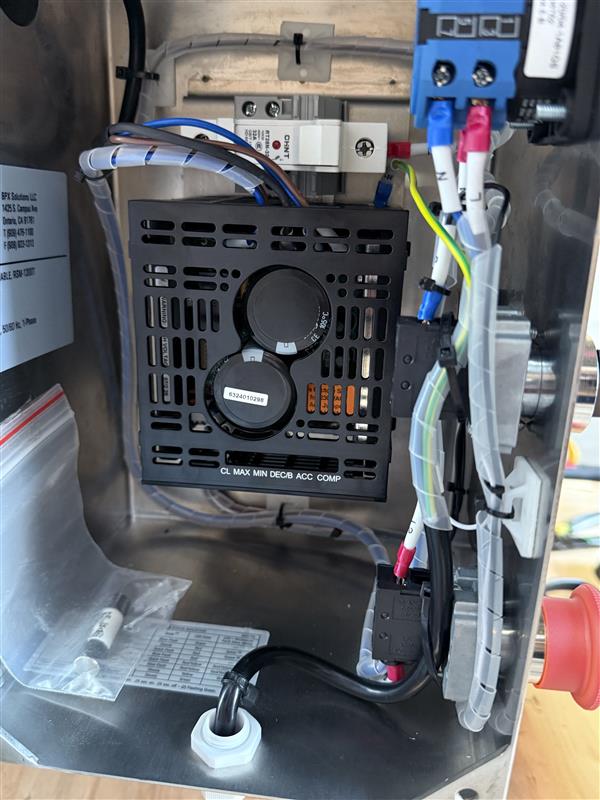

Step 1: Remove the Electrical Box Cover

• Locate the electrical box on the RSM Turntable.
• Use the appropriate tools to remove the cover carefully.
•

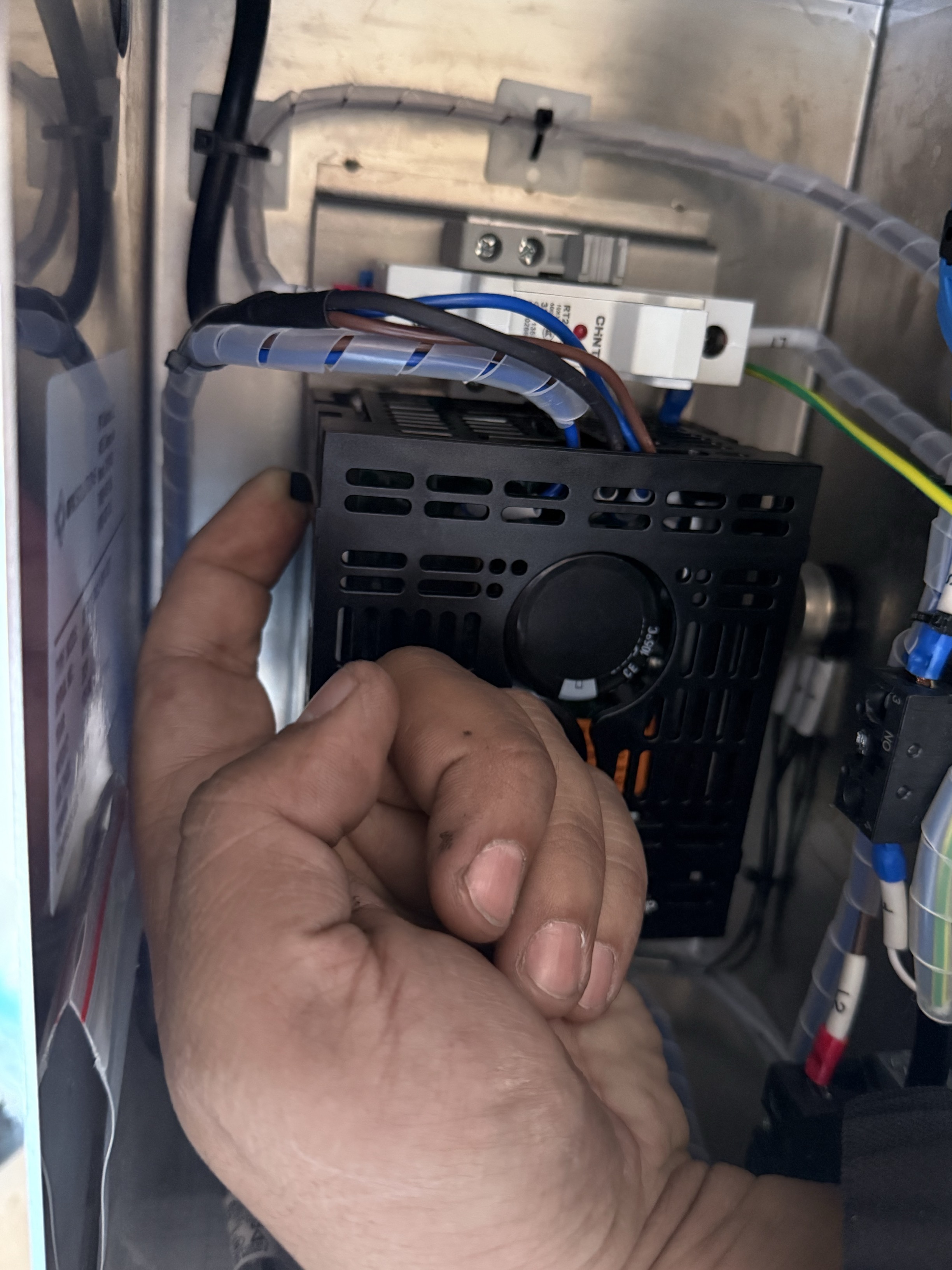

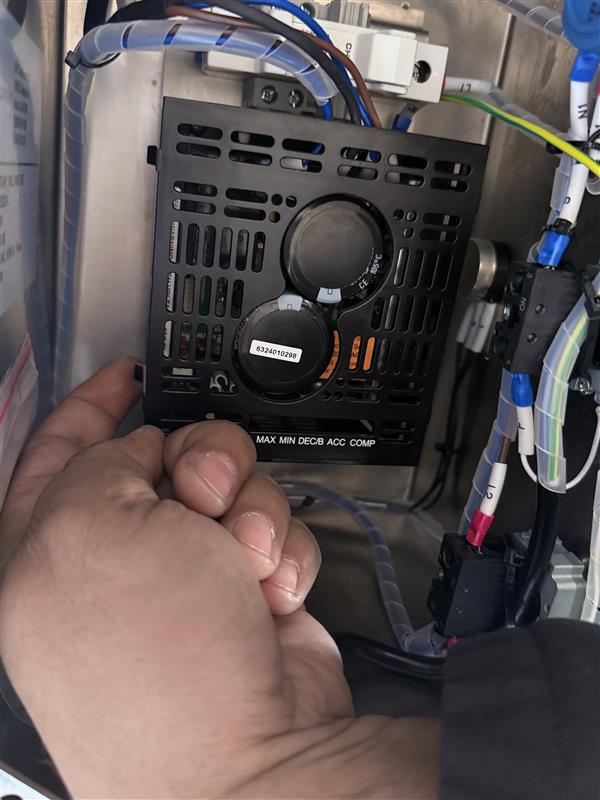

Step 2: Remove the VFD Cover Tabs

• Identify the two tabs on the left side of the VFD cover.
• Remove these tabs to gain access to the voltage adjustment settings.
•

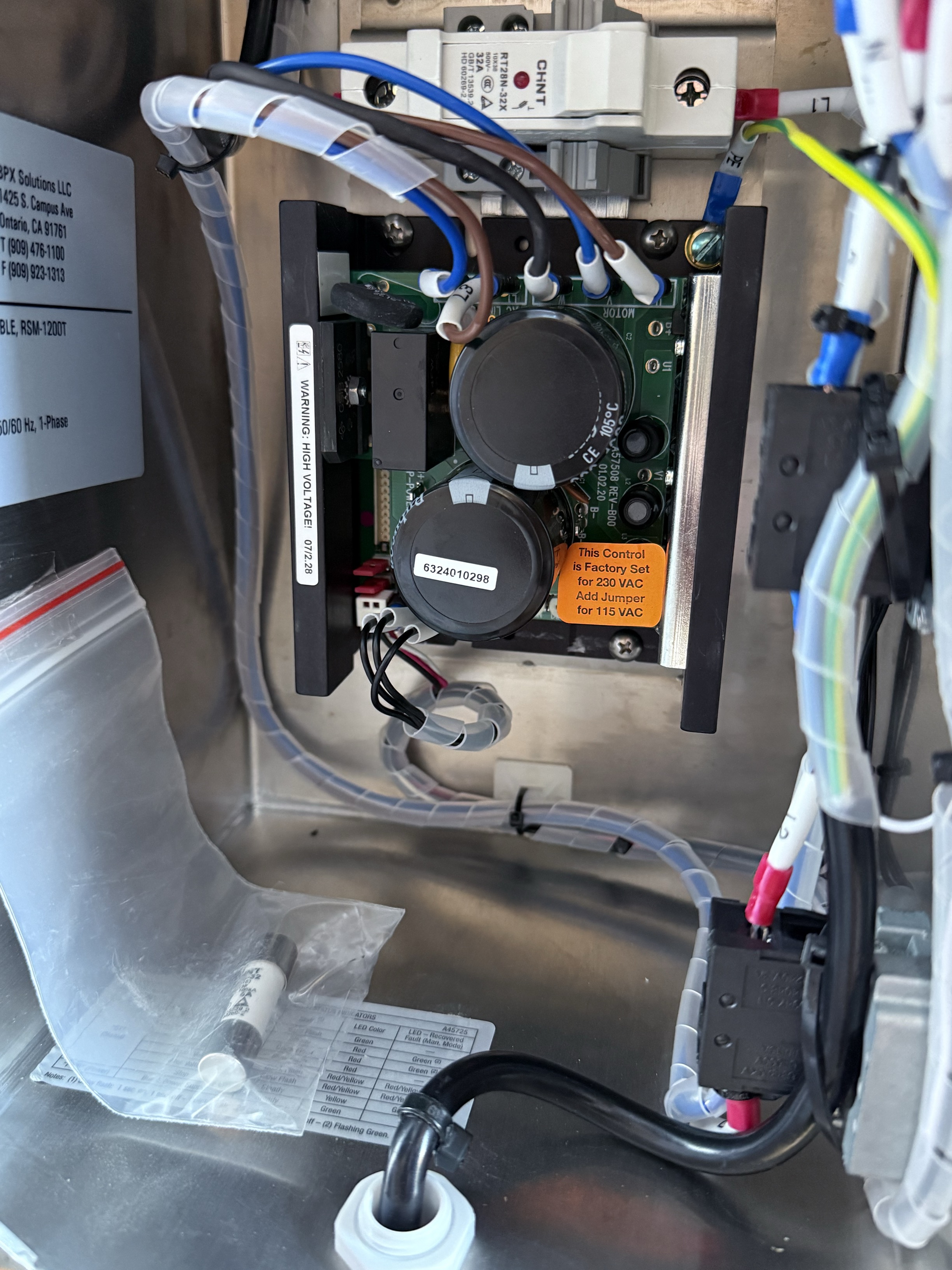

Step 3: Locate the Voltage Setting Sticker

• Inside the VFD, look for a sticker labeled:
  • "This Control is Factory Set for 230 VAC Add Jumper for 115 VAC."

  •

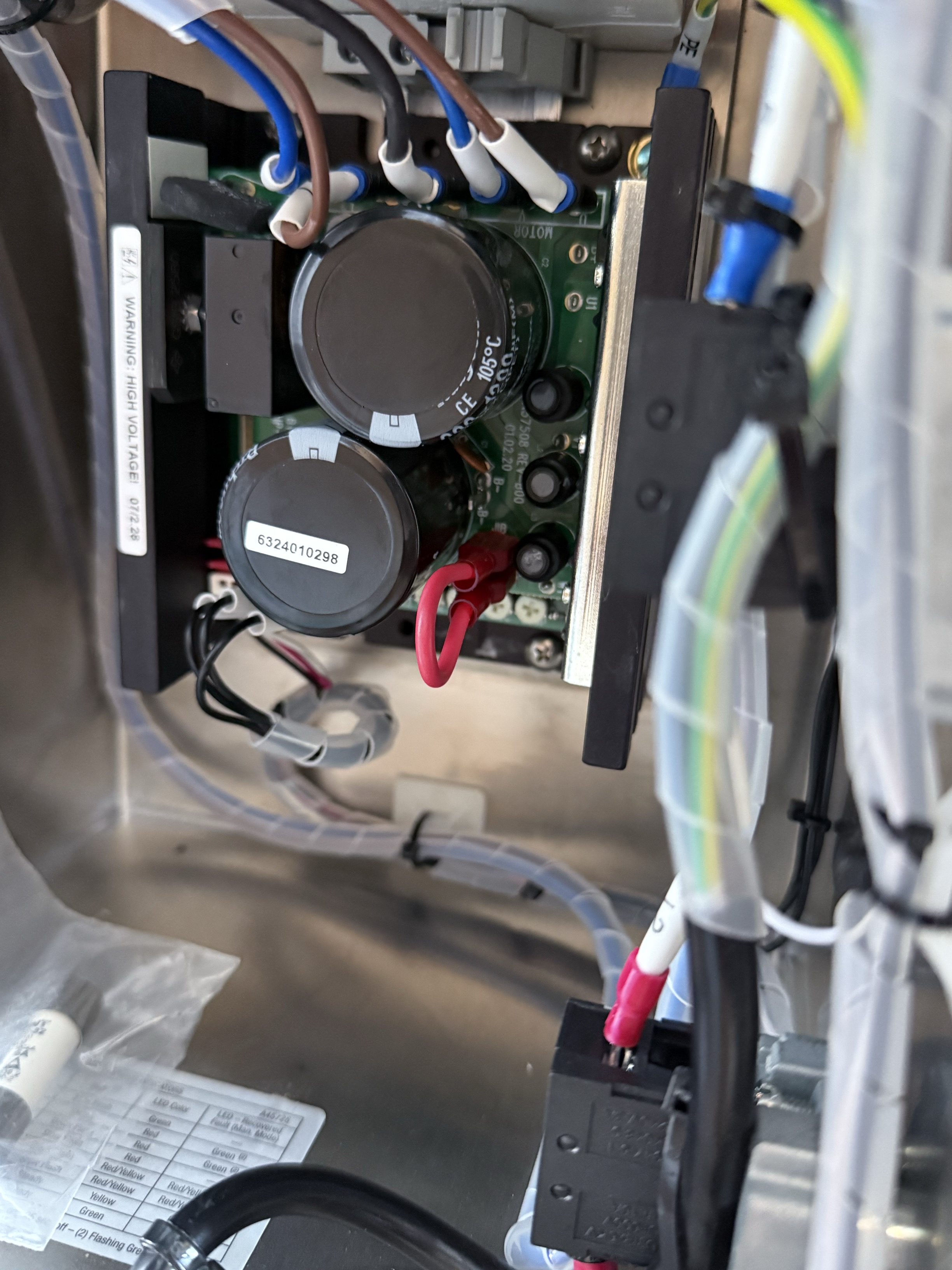

Step 4: Modify Voltage Setting

• Remove the voltage setting sticker.
• Use two fully nylon insulated butted seam connectors for:
  • Wire size: 22-18 AWG
  • Tab size: 0.250 in.
• Create a jumper on the two pins to switch the turntable to 115 VAC.

•

Step 5: Test the Machine

• Plug the machine into a 110V outlet.
• Power it on and confirm that the turntable operates correctly.

By following these steps, you will successfully convert the RSM Turntable from 220V to 110V. If you experience any issues, contact technical support for further assistance.
